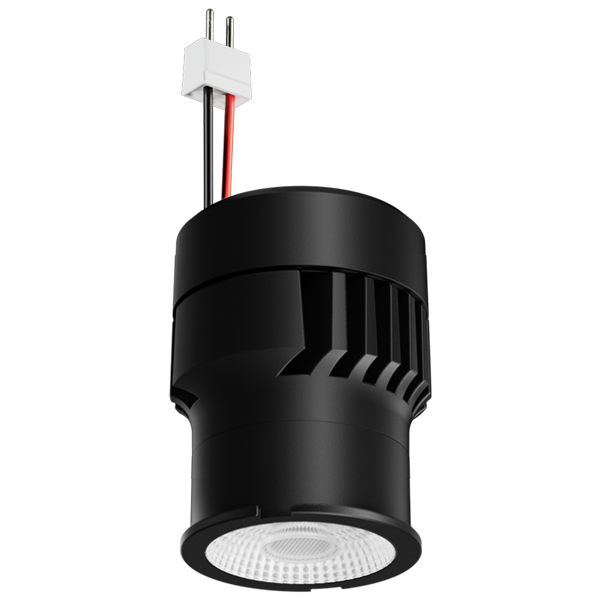

12V AC Retrofit Koto™ LED Module
Model / SKU: ELK0827-12$78.59
$78.59 each
| Wattage | 9 |
|---|---|
| Color temp (CCT) | 2700 |
Spec Sheet & Documents
Download Spec Sheet (PDF)- 🚚 Free shipping on orders $999+
- ↩ 30-day returns (see policy)
Works with 3″ and 4″ ELCO 12V AC Housings with 3 and 4 Koto™ Trims as a retrofit option
- 9W, 800 lm, 3000K
- Works with 3″ & 4″ MR16 Bi-Pin Low Voltage Housings & Koto Trims 2 ⅛″ O.D. - 2 ⅞″ H
- Integrated 12V AC Dimmable Driver
- Works with Electronic and Magnetic 12V AC transformers
- Works in 3″ and 4″ ELCO Low Voltage Housings with GU5.3 Base.
- Excellent color rendering 93+ CRI
- Standard 38° Lens installed, 25° and 60° lens included with each module - Optional Lens: 18° (EP731C)
- Optional: Louver (L45), Linear Lens (L46), Spread Lens (L47), Single Asymmetric Lens (L54), Double Asymmetric Lens (L55)
- Title 24 JA8-2019 Compliant
- Meets Energy Star Requirements
- Covered by U.S. PATENTS and Patents Pending
| Lamp Type | LED |
| Wattage | 9 |
| CCT | 2700 |
| CRI | 90 |
| Lumens | 800 |
| Voltage | 12V AC |
| Beam Angle | 25°, 38°, 60° |
| Brand | ELCO Lighting |
| SKU | ELK0827-12 |
| Type | LED Retrofit |
| Finish | ELK0827-12, ELK0830-12, ELK08SD-12 |
