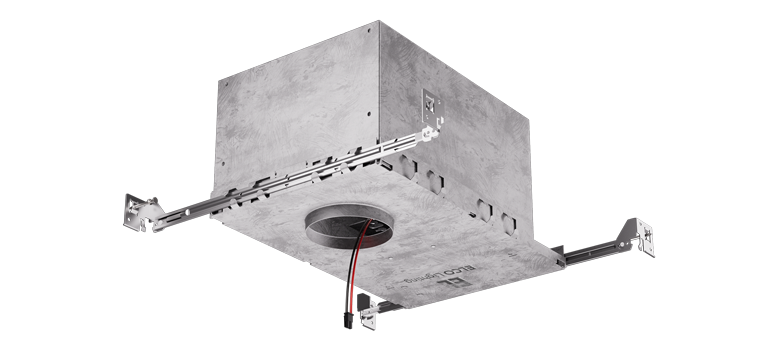

2" Koto™ Architectural Maximum Adjustability High Lumen IC Airtight Housing
2" Koto™ Architectural Maximum Adjustability High Lumen IC Airtight Housing2" Koto™ Architectural Maximum Adjustability High Lumen IC Airtight Housing
ELCO Lighting

2" Koto™ Architectural Maximum Adjustability High Lumen IC Airtight Housing

ELCO LightingModel / SKU: E2LK41ICA · UPC 633999353583
Recessed Housing
$87.23
$87.23 each
Key specs
Wattage15.7W/18.9W
Get a quote
Spec Sheet & Documents
Download Spec Sheet (PDF)

Koto™ Architectural Housing: 120/277V (0-10V/Triac/ELV) or 120V (Triac/ELV), and ICALWN (Lutron Athena Wireless Node) with optional Emergency Battery Backup. Must be used with Koto™ Architectural LED Light Engines (ELK21 and ELK24 Series). Lumen output based on module.

  • IC Airtight for direct contact with insulation.
  • Easy-to-Remove driver.
  • MAX. 35° adjustability.
  • Optional 90 minutes, 120/277 VAC, 60Hz, Emergency Backup.
  • Flicker-Free Dimming.
  • USA designed and assembled.
  • Limited 5 year warranty.
  • For use with ELCO Koto™ Architectural LED Light Engines (ELK21 and ELK24 Series).
  • Optional Accesory: 2″ Koto™ Housing Ceiling Extension Collar
Wattage 15.7W - 18.9W
Lumens 21 lm - 1950 lm
Voltage 120/277V or 120V
Dimmable Triac/ELV or 0-10V/Triac/ELV (1% Dimming) or DALI 2
Lamp Type LED
Power Factor ≥0.95
Damp Location Listed

Catalog Numbers

Catalog Number Wattage Lumens Voltage Dimming Spec Sheet
E2LK41ICA 15.7W 1450 (ELK21) - 1750 (ELK24) lm 120V Triac/ELV PDF
E2LK94ICA 18.9W 1650 (ELK21) - 1950 (ELK24) lm 120V Triac/ELV PDF
E2LK42ICAD 15.7W 1450 (ELK21) - 1750 (ELK24) lm 120/277V 0-10V/Triac/ELV (1% Dimming) PDF
E2LK95ICAD 18.9W 1650 (ELK21) - 1950 (ELK24) lm 120/277V 0-10V/Triac/ELV (1% Dimming) PDF

View Full Specifications (PDF)
