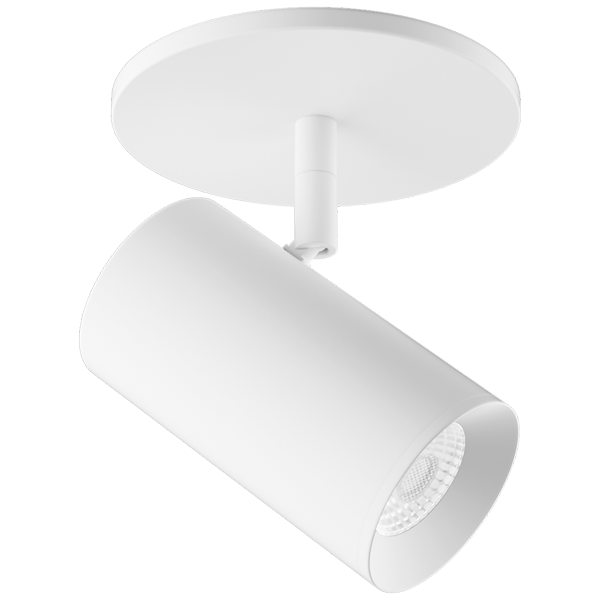

2″ Koto Sylo™ Monopoint
2″ Koto Sylo™ Monopoint2″ Koto Sylo™ Monopoint2″ Koto Sylo™ Monopoint2″ Koto Sylo™ Monopoint
ELCO Lighting

2″ Koto Sylo™ Monopoint

ELCO LightingModel / SKU: E25MB-0324
Ceiling Mount
$124.02
$124.02 each
Key specs
Wattage5W/10.5W/12.5W/11.8W
Color temp (CCT)2400K/2700K/3000K/3500K/4000K/Sunset/2700K/3000K/3500K/4000K/5000K
FinishAll Black/Silver/All White
Get a quote
Spec Sheet & Documents
Download Spec Sheet (PDF)

Works with Koto™ Standard LED Module

  • Modern Die-Cast aluminum fixture for easy maintenance and upgrades
  • Standard Fixtures or Fixtures with Stems (12", 24", 36", 48", and 60") available
  • Includes Standard 38º lens, with 25º and 60º lenses. Optional: 18° & 90° lenses available.
  • Fits 3 ½″ and 4″ Octagon and Round Junction boxes
  • Sunset option dims from 3000K to 1800K
  • Tunable White option dims from 1800K to 4000K
  • Human Centric option dims from 4000K to 2200K
  • 90° tilt, 358° rotation
  • Energy Star Certified. Title 24 JA8-2022 Compliant
  • Life span of 50,000 hours L70
  • 120V Triac/ELV with standard module options (-03, -07, -08, -09, -10, -11, -13 series) 120/277V, 0-10V/Triac/ELV with DX module (-10DX series)
Wattage 5W - 12.5W
Lumens 350 lm - 1150 lm
Voltage 120/277V or 120V
Color Temp. 2400K - 5000K, Sunset, Tunable White
Dimmable Triac/ELV or 0-10VTriac/ELV (1% Dimming) or DALI 2 Controlled
Lamp Type LED
Beam Angle 38°
CRI 95
Damp Location cUL Listed

Catalog Numbers

Catalog Number Wattage CCT Lumens Voltage Dimming Beam Angle Finish Spec Sheet
E25MB-0324 5W 2400K 350 lm 120V Triac/ELV 38° All Black PDF
E25MB-0327 5W 2700K 350 lm 120V Triac/ELV 38° All Black PDF
E25MB-0330 5W 3000K 350 lm 120V Triac/ELV 38° All Black PDF
E25MB-0727 10.5W 2700K 750 lm 120V Triac/ELV 38° All Black PDF
E25MB-0730 10.5W 3000K 750 lm 120V Triac/ELV 38° All Black PDF
E25MB-0735 10.5W 3500K 750 lm 120V Triac/ELV 38° All Black PDF
E25MB-0740 10.5W 4000K 750 lm 120V Triac/ELV 38° All Black PDF
E25MB-0927 10.5W 2700K 950 lm 120V Triac/ELV 38° All Black PDF
E25MB-0930 10.5W 3000K 950 lm 120V Triac/ELV 38° All Black PDF
E25MB-0935 10.5W 3500K 950 lm 120V Triac/ELV 38° All Black PDF
E25MB-09SD 10.5W Sunset 950 lm 120V Triac/ELV 38° All Black PDF
E25MB-1127 12.5W 2700K 1150 lm 120V Triac/ELV 38° All Black PDF
E25MB-1130 12.5W 3000K 1150 lm 120V Triac/ELV 38° All Black PDF
E25MB-11SD 12.5W Sunset 1150 lm 120V Triac/ELV 38° All Black PDF
E25MS-0727 10.5W 2700K 750 lm 120V Triac/ELV 38° Silver PDF
E25MS-0730 10.5W 3000K 750 lm 120V Triac/ELV 38° Silver PDF
E25MS-0927 10.5W 2700K 950 lm 120V Triac/ELV 38° Silver PDF
E25MS-0930 10.5W 3000K 950 lm 120V Triac/ELV 38° Silver PDF
E25MS-09SD 10.5W Sunset 950 lm 120V Triac/ELV 38° Silver PDF
E25MS-1127 12.5W 2700K 1150 lm 120V Triac/ELV 38° Silver PDF
E25MS-11SD 12.5W Sunset 1150 lm 120V Triac/ELV 38° Silver PDF
E25MW-0324 5W 2400K 350 lm 120V Triac/ELV 38° All White PDF
E25MW-0327 5W 2700K 350 lm 120V Triac/ELV 38° All White PDF
E25MW-0330 5W 3000K 350 lm 120V Triac/ELV 38° All White PDF
E25MW-0727 10.5W 2700K 750 lm 120V Triac/ELV 38° All White PDF
E25MW-0730 10.5W 3000K 750 lm 120V Triac/ELV 38° All White PDF
E25MW-0735 10.5W 3500K 750 lm 120V Triac/ELV 38° All White PDF
E25MW-0740 10.5W 4000K 750 lm 120V Triac/ELV 38° All White PDF
E25MW-0927 10.5W 2700K 950 lm 120V Triac/ELV 38° All White PDF
E25MW-0930 10.5W 3000K 950 lm 120V Triac/ELV 38° All White PDF
E25MW-0935 10.5W 3500K 950 lm 120V Triac/ELV 38° All White PDF
E25MW-0940 10.5W 4000K 950 lm 120V Triac/ELV 38° All White PDF
E25MW-09SD 10.5W Sunset 950 lm 120V Triac/ELV 38° All White PDF
E25MW-1127 12.5W 2700K 1150 lm 120V Triac/ELV 38° All White PDF
E25MW-1130 12.5W 3000K 1150 lm 120V Triac/ELV 38° All White PDF
E25MW-1135 12.5W 3500K 1150 lm 120V Triac/ELV 38° All White PDF
E25MW-1140 12.5W 4000K 1150 lm 120V Triac/ELV 38° All White PDF
E25MW-11SD 12.5W Sunset 1150 lm 120V Triac/ELV 38° All White PDF
E25MB-08CT5 10.5W 2700K, 3000K, 3500K, 4000K, 5000K 825 lm 120V Triac/ELV 38° All Black PDF
E25MB-10CT5 12.5W 2700K, 3000K, 3500K, 4000K, 5000K 1000 lm 120V Triac/ELV 38° All Black PDF
E25MS-08CT5 10.5W 2700K, 3000K, 3500K, 4000K, 5000K 825 lm 120V Triac/ELV 38° Silver PDF
E25MS-10CT5 12.5W 2700K, 3000K, 3500K, 4000K, 5000K 1000 lm 120V Triac/ELV 38° Silver PDF
E25MW-08CT5 10.5W 2700K, 3000K, 3500K, 4000K, 5000K 825 lm 120V Triac/ELV 38° All White PDF
E25MW-10CT5 12.5W 2700K, 3000K, 3500K, 4000K, 5000K 1000 lm 120V Triac/ELV 38° All White PDF
E25MB-10DX27 11.8W 2700K 1000 lm 120/277V 0-10VTriac/ELV (1% Dimming) 38° All Black PDF
E25MB-10DX30 11.8W 3000K 1000 lm 120/277V 0-10VTriac/ELV (1% Dimming) 38° All Black PDF
E25MB-10DX35 11.8W 3500K 1000 lm 120/277V 0-10VTriac/ELV (1% Dimming) 38° All Black PDF
E25MB-10DX40 11.8W 4000K 1000 lm 120/277V 0-10VTriac/ELV (1% Dimming) 38° All Black PDF
E25MB-10DXSD 11.8W Sunset 1000 lm 120/277V 0-10VTriac/ELV (1% Dimming) 38° All Black PDF
E25MS-10DX40 11.8W 4000K 1000 lm 120/277V 0-10VTriac/ELV (1% Dimming) 38° Silver PDF
E25MW-10DX27 11.8W 2700K 1000 lm 120/277V 0-10VTriac/ELV (1% Dimming) 38° All White PDF
E25MW-10DX30 11.8W 3000K 1000 lm 120/277V 0-10VTriac/ELV (1% Dimming) 38° All White PDF
E25MW-10DX35 11.8W 3500K 1000 lm 120/277V 0-10VTriac/ELV (1% Dimming) 38° All White PDF
E25MW-10DX40 11.8W 4000K 1000 lm 120/277V 0-10VTriac/ELV (1% Dimming) 38° All White PDF

View Full Specifications (PDF)
