Home › 3" Koto™ Architectural Shallow Maximum Adjustability IC Airtight Housing

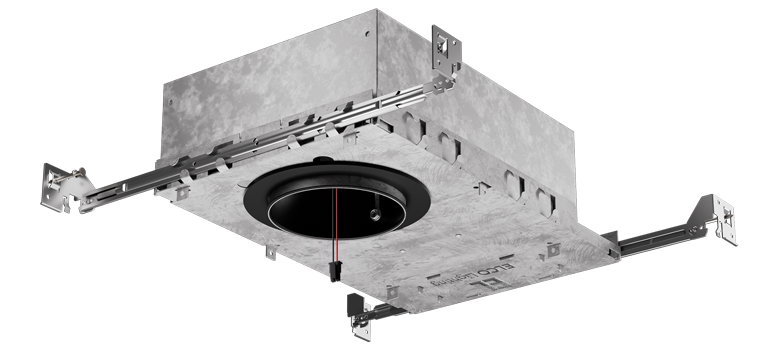

3" Koto™ Architectural Shallow Maximum Adjustability IC Airtight Housing
3" Koto™ Architectural Shallow Maximum Adjustability IC Airtight Housing3" Koto™ Architectural Shallow Maximum Adjustability IC Airtight Housing
ELCO Lighting

3" Koto™ Architectural Shallow Maximum Adjustability IC Airtight Housing

ELCO LightingModel / SKU: E3LK76ICA · UPC 633999126743
Recessed Housing
$65.38
$65.38 each
Key specs
Wattage14.7W/14.7 MAX
Get a quote
Spec Sheet & Documents
Download Spec Sheet (PDF)

Koto™ Architectural Housing: 120/277V (0-10V/Triac/ELV) or 120V (Triac/ELV), and ICALWN (Lutron Athena Wireless Node) with optional Emergency Battery Backup. Must be used with Koto™ Architectural LED Light Engines (ELK19, ELK21, or ELK24 Series). Lumen output based on module.

  • IC Airtight for direct contact with insulation.
  • Easy-to-Remove driver.
  • Optional 90 minutes, 120/277 VAC, 60Hz, Emergency Backup.
  • Flicker-Free Dimming.
  • USA designed and assembled.
  • Limited 5 year warranty.
  • For use with ELCO Koto™ Architectural LED Light Engines (ELK19, ELK21, or ELK24 Series).
Wattage 14.7W - 14.7 MAXW
Lumens 850 (ELK19) - 1100 (ELK21) - 1500 (ELK24) lm
Voltage 120/277V or 120V
Dimmable Triac/ELV or 0-10V/Triac/ELV or DALI 2
Lamp Type LED
Power Factor ≥0.95
Damp Location Listed

Catalog Numbers

Catalog Number Wattage Lumens Voltage Dimming Spec Sheet
E3LK76ICA 14.7W 850 (ELK19) - 1100 (ELK21) - 1500 (ELK24) lm 120V Triac/ELV PDF
E3LK77ICAD 14.7W 850 (ELK19) - 1100 (ELK21) - 1500 (ELK24) lm 120/277V 0-10V/Triac/ELV PDF
E3LK77ICADAL 14.7W 850 (ELK19) - 1100 (ELK21) - 1500 (ELK24) lm 120/277V DALI 2 PDF
E3LK77ICAD-EM7 14.7 MAX 120V 0-10V/Triac/ELV PDF

View Full Specifications (PDF)
