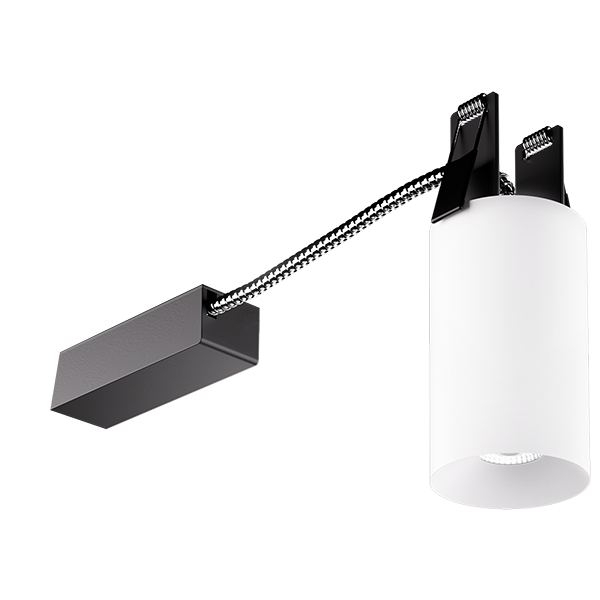

3″ Koto Sylo™ Direct Mount
3″ Koto Sylo™ Direct Mount3″ Koto Sylo™ Direct Mount3″ Koto Sylo™ Direct Mount3″ Koto Sylo™ Direct Mount
ELCO Lighting

3″ Koto Sylo™ Direct Mount

ELCO LightingModel / SKU: E36DB-09SD
Ceiling Mount
$145.31
$145.31 each
Key specs
Wattage10.5W/12.5W
Color temp (CCT)Sunset/3000K/2700K/Human Centric/2700K/3000K/3500K/4000K/5000K
FinishAll Black/All White
Get a quote
Spec Sheet & Documents
Download Spec Sheet (PDF)
  • Modern Die-Cast aluminum fixture for easy maintenance and upgrades
  • Includes Standard 38º lens, with 25º and 60º lenses. Optional: 18° & 90° lenses available.
  • Directly mounts into ceiling (Up to 1.5″ ceiling thickness)
  • Sunset option dims from 3000K to 1800K
  • Human Centric option dims from 4000K to 2200K
  • Title 24 JA8-2019 & Energy Star Compliant
  • Life span of 50,000 hours L70
Wattage 5W - 12.5W
Lumens 350 lm - 1150 lm
Voltage 120/277V or 120V
Color Temp. 2400K - 5000K, Human Centric, Sunset, Tunable White
Dimmable Triac/ELV or DALI 2 Controlled
Lamp Type LED
Beam Angle 38°
CRI 95
Damp Location cUL Listed

Catalog Numbers

Catalog Number Wattage CCT Lumens Voltage Dimming Beam Angle Finish Spec Sheet
E36DB-09SD 10.5W Sunset 950 lm 120V Triac/ELV 38° All Black PDF
E36DB-1130 12.5W 3000K 1150 lm 120V Triac/ELV 38° All Black PDF
E36DW-0730 10.5W 3000K 750 lm 120V Triac/ELV 38° All White PDF
E36DW-0927 10.5W 2700K 950 lm 120V Triac/ELV 38° All White PDF
E36DW-11HC 12.5W Human Centric 1050 lm 120V Triac/ELV 38° All White PDF
E36DB-10CT5 12.5W 2700K, 3000K, 3500K, 4000K, 5000K 1000 lm 120V Triac/ELV 38° All Black PDF

View Full Specifications (PDF)
