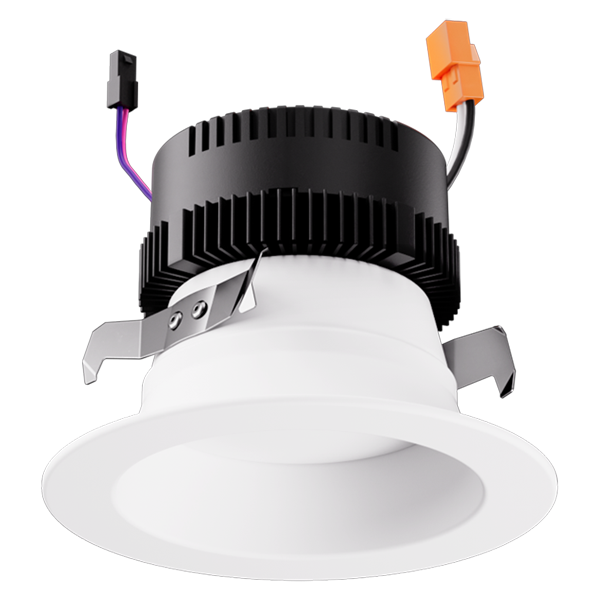

4" 0-10V LED Inserts with 5-CCT and 3-Lumen Switch
ELCO Lighting

4" 0-10V LED Inserts with 5-CCT and 3-Lumen Switch

ELCO LightingModel / SKU: EL475CT5DW
Recessed
$72.67
$72.67 each
Key specs
Wattage9.5
Color temp (CCT)2700K
FinishAll White
Get a quote
Spec Sheet & Documents
Download Spec Sheet (PDF)

This unique Ply System 0-10V dimmable LED Insert gives you the options you are looking for in one fixture. Engineered with energy-efficient LED technology and with a 120/277V 0-10V dimmable driver for a budget friendly 0-10V solution. Switch to desired Color Temperature (2700K, 3000K, 3500K, 4000K or 5000K) and Lumen Output (850 lm, 1000 lm, 1500 lm) by using manual switch located on module. Designed to be used for New Construction, Remodel with ELCO Ply™ System Housings or as a retrofit with existing housings.

  • Manual switch to choose desired Color Temperature and Lumen Output
  • 0-10V Dimmable
  • 120/277V Driver
  • Lumens (Wattage): 850 lm (9.5W), 1000 lm (13.5W), 1500 lm (18W)
  • Soft white lens provides smooth lumen distribution and eliminates LED pixelation
  • Deep set LED trim reduces glare while providing even illumination
  • 90+ CRI for extremely accurate color rendering
  • CA Title 24, ETL listed, ENERGY STAR, JA8-2016-E
  • Life span of 50,000 hours L70
  • Patent Pending
  • Certifications & Listings: ETL Listed, Energy Star, Title 24 (JA8)
Lamp Type LED
Wattage 9.5, 13.5, 18
CCT 2700K, 3000K, 3500K, 4000K, 5000
CRI 90+
Lumens 850, 1000, 1500
Voltage 120/277V
Finish All White

View Full Specifications (PDF)
