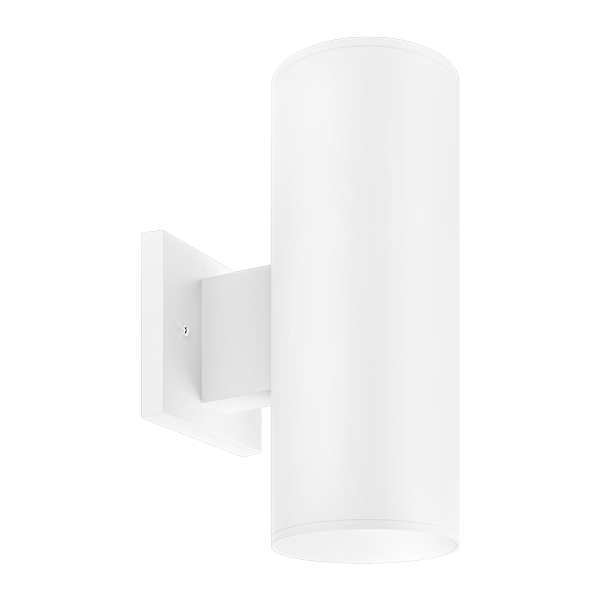

4″ Koto Sylo™ Wall Mount
4″ Koto Sylo™ Wall Mount4″ Koto Sylo™ Wall Mount4″ Koto Sylo™ Wall Mount
ELCO Lighting

4″ Koto Sylo™ Wall Mount

ELCO LightingModel / SKU: E42AB0730
Wall Mount
$173.18
$173.18 each
Key specs
Wattage10.5W/12.5W
Color temp (CCT)3000K/Human Centric/2700K
FinishAll Black/All White
Get a quote
Spec Sheet & Documents
Download Spec Sheet (PDF)

Works with Koto™ Standard LED Module

  • Modern Die-Cast aluminum wall mount fixture
  • Includes Standard 38º lens, with 25º and 60º lenses. Optional: 18° & 90° lenses available.
  • Fits 3 ½″ and 4″ Octagon and Round Junction boxes
  • Sunset option dims from 3000K to 1800K
  • Human Centric option dims from 4000K to 2200K
  • Tunable White option dims from 1800K to 4000K
  • Title 24 JA8-2022 Compliant
  • Life span of 50,000 hours L70
Wattage 5W - 14.7W
Lumens 350 lm - 1500 lm
Voltage 120/277V or DALI 2, 120/277V
Color Temp. 2700K - 5000K, 2400K/2400, 2700K/2700, 3000K/3000, 3500K/3500, 4000K/4000, Human Centric, Human Centric/Human Centric, Sunset, Sunset/Sunset, Tunable White
Dimmable Triac/ELV or 0-10V/Triac/ELV (1% Dimming) or DALI 2 Controlled
Lamp Type LED
Beam Angle 38°
CRI 95
Wet Location cUL Listed

Catalog Numbers

Catalog Number Wattage CCT Lumens Voltage Dimming Beam Angle Finish Spec Sheet
E42AB0730 10.5W 3000K 750 lm 120V Triac/ELV 38° All Black PDF
E42AB1130 12.5W 3000K 1150 lm 120V Triac/ELV 38° All Black PDF
E42AB11HC 12.5W Human Centric 1150 lm 120V Triac/ELV 38° All Black PDF
E42AW0927 10.5W 2700K 950 lm 120V Triac/ELV 38° All White PDF

View Full Specifications (PDF)
