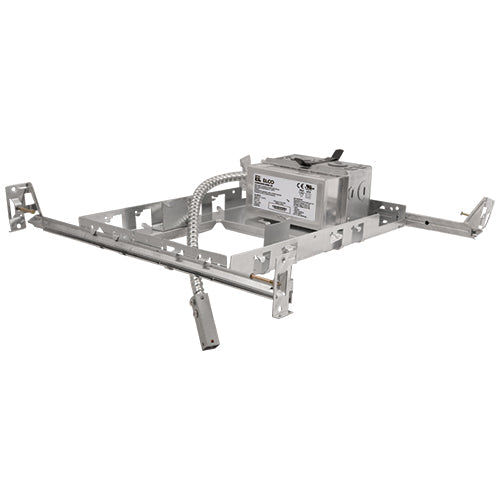

5" IC Shallow Frame with Driver

5 IC Frame for Maple™ System LED Light Engines. For use in Insulted Ceilings, Damp Location rated and Wet Location rated with applicable LED Light Engines.

• For use in Insulated Ceilings with ELCO 5 Maple™ System LED Light Engines.
• Dimmable Triac/ELV (1100 lm units), 0-10V (2000 lm units).
• Optional Emergency Backup 90 minutes, 120/277 VAC, 60Hz.
• High Efficiency Driver mounted on J-box for greater lumen output and easy access from below the ceiling.
• Suitable for wet location covered ceiling only with E520/E524 Light Engines (ordered separately).
• 2⅞ Height Allows for installation in shallow ceilings (when used with non adjustable light engines).
• ENERGY STAR® Certified. California Title 24 (JA8-2016).
