Home › 6" 0-10V LED Inserts

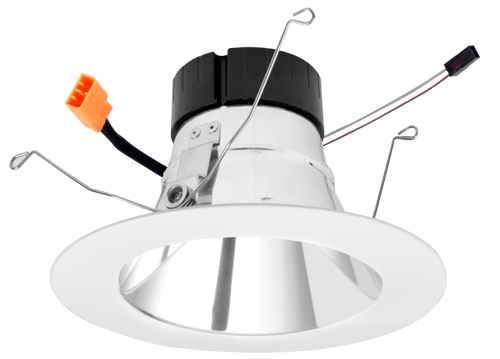

6" 0-10V LED Inserts
Model / SKU: EL69535DCW$52.38
$52.38 each
| Wattage | 20 |
|---|---|
| Color temp (CCT) | 3500 |
| Finish | Chrome with White Trim |
Spec Sheet & Documents
Download Spec Sheet (PDF)- 🚚 Free shipping on orders $999+
- ↩ 30-day returns (see policy)
The Ply System 0-10V dimmable LED Inserts are engineered with energy-efficient LED technology and with a 120/277V 0-10V dimmable driver for a budget friendly 0-10V solution. Designed to be used for New Construction, Remodel with ELCO Ply System Housings or as a retrofit with existing housings.
- 0-10V Dimmable
- 120/277V Driver
- Lumens (Wattage): 1425 lm (20W)
- Soft white lens provides smooth lumen distribution and eliminates LED pixelation
- Deep set LED trim reduces glare while providing even illumination
- 93+ CRI for extremely accurate color rendering
- ETL listed
- Energy Star Certified
- Title 24 JA8-2019 Compliant
- Life span of 50,000 hours L70
- Certifications & Listings: ETL Listed, Energy Star, Title 24 (JA8)
| Lamp Type | LED |
| Wattage | 20 |
| CCT | 3500 |
| CRI | 93+ |
| Lumens | 1425 |
| Voltage | 120/277V |
| Finish | Chrome with White Trim |
| Brand | ELCO Lighting |
| SKU | EL69535DCW |
| Type | Recessed |
| Title | Default Title |
