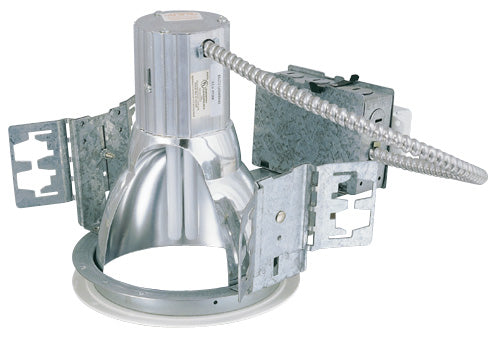

7" Architectural CFL Vertical Downlight

• 7 Vertical Architectural CFL Downlight.
• Energy efficient.
• Single wall construction.
• Integral thermal protector guards against improper lamping.
• Housing equipped with vertically adjustable mounting brackets that accept 1/2 conduit or C-channels (CH26) or linear bar hangers (FB27).
• Hanger bars not included, order CH26 or FB27 separately or use 1/2 EMT pipe.
• Pre-wired junction box provided with 1/2 and 3/4 knockouts.
• Maximum (8) No. 12 AWG branch circuit conductors (4 in, 4 out).
• Junction box provided with removable access plates.
• Housing adjusts 3/4 to accommodate various ceiling thickness.
• cUL Listed for damp location and for feed through.
