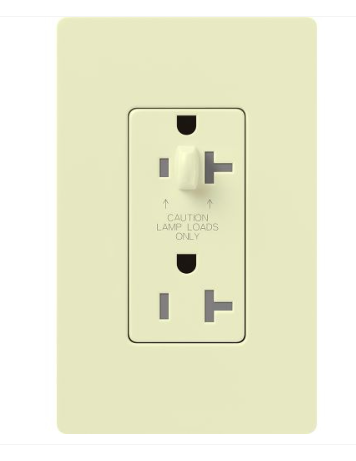

Lutron Claro 20A Half-Dimming, Tamper Resistant Duplex Receptacle, Decorator-Style Outlet, Gloss Finish, CAR-20-HDTR-AL, Almond
Lutron

Lutron Claro 20A Half-Dimming, Tamper Resistant Duplex Receptacle, Decorator-Style Outlet, Gloss Finish, CAR-20-HDTR-AL, Almond

Model / SKU: CAR-20-HDTR-AL
Receptacles & USB Outlets
$67.50
$67.50 each
Get a quote
Spec Sheet & Documents
Download Spec Sheet (PDF)

Top half for dimming. Projecting nub prevents standard plug from being used. Requires replacement plug for dimming table and floor lamps. Bottom half is a general use receptacle and will fit standard duplex plugs. Tamper resistant shutter mechanism.

  • Features on receptacle(s) for dimming use reject standard plugs
  • Uses standard switched receptacle wiring (HDTR requires two separate live/hot feeds)
  • Permanently installed internal tamper resistant shutter mechanism capable of resisting insertion of foreign elements into the device
  • Specification grade construction
  • Back wire installation capable
  • Receptacle face compatible with NEMA designer and Nova T opening wallplates
  • Plug may be used with standard receptacles and with new receptacles designed for dimming use
  • Plug is compatible with 18 AWG (0.75 mm2) SPT-2 lamp cords
  • Plug uses split-shell design for easy wiring and the ability to control cord exit direction
Part Number CAR-20-HDTR-AL
UPC 027557779548
Minimum Order Qty 1
Weight 0.2 lb
Height 4.5 in
Width 2.3 in
Depth 2.3 in
