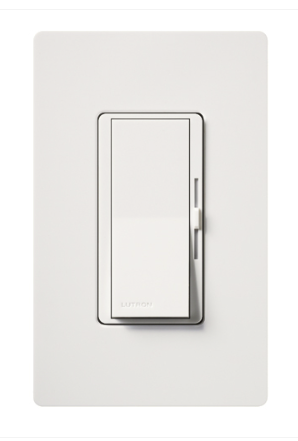

Lutron Diva Reverse-Phase (ELV) Dimmer Switch, 250W LED or 500W ELV, Single Pole/3-Way, Neutral Required, 120V, DVRP-253P-WH, White
Lutron

Lutron Diva Reverse-Phase (ELV) Dimmer Switch, 250W LED or 500W ELV, Single Pole/3-Way, Neutral Required, 120V, DVRP-253P-WH, White

Model / SKU: DVRP-253P-WH
Dimmers
$142.30
$142.30 each
Get a quote
Spec Sheet & Documents
Download Spec Sheet (PDF)

Controls 120 V/250 W LED/CFL, and 500 W Inc and ELV loads. Paddle turns on/off. Slide up to brighten, down to dim.

  • On/off paddle switch with a linear-slide dimmer for a standard designer wallplate opening.
  • UL Listed to control: Dimmable LED with integrated driver; Dimmable compact fluorescent (CFL) with integrated ballast; Incandescent/Halogen; Electronic Low-Voltage (ELV) transformers
  • Reverse-phase type control. Neutral wire connection is required in the wallbox.
  • 100% factory tested
  • 10 year warranty with product registration
Part Number DVRP-253P-WH
UPC 784276221665
Minimum Order Qty 1
Weight 0.27 lb
Height 4.5 in
Width 2.25 in
Depth 2.25 in

Spec Sheet (PDF) · Installation Guide (PDF) · Warranty (PDF)
