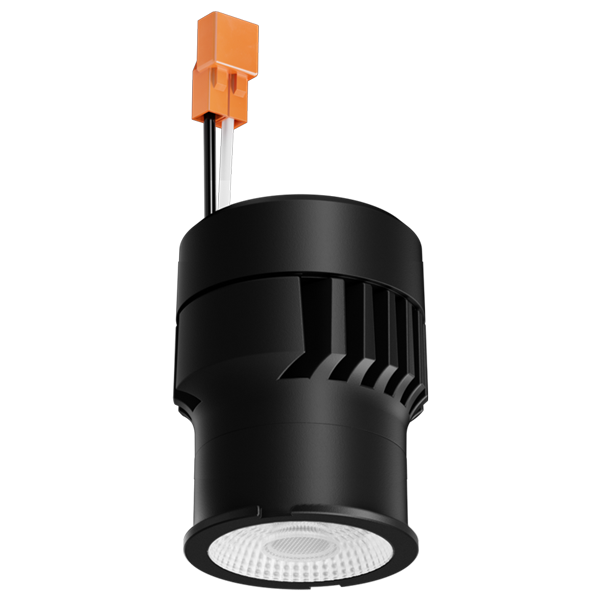

Koto™ LED Module ELK07 Series – 10.5W, 730–860 lm
Model / SKU: ELK0724-S$73.60
$73.60 each
| Wattage | 10.5W |
|---|---|
| Color temp (CCT) | 2400K/2700K/3000K/3500K/4000K |
Spec Sheet & Documents
Download Spec Sheet (PDF)- 🚚 Free shipping on orders $999+
- ↩ 30-day returns (see policy)
Works with 2″, 3″, 4″, 5" & 6" Recessed Housings and Koto™ Trims
- Integrated 120V Dimmable Driver Triac/ELV
- Excellent color rendering 95+ CRI
- Works in 2″, 3″, 4″ and 6″ ELCO housings with Koto™ twist-on
- Energy Star Certified
- Title 24 JA8-2019 Compliant
- Standard 38° Lens installed, 25° and 60° lens included with each module - Optional Lens: 18° (EP731C), 90° (EP739C)
- Optional: Louver ( L45 ), Linear Lens ( L46 ), Spread Lens ( L47 ), Clear Lens ( L48 ), Frosted Lens ( L49 ), Snoot ( L50 ), Color Shifter ( L51 ), Blue Lens ( L52 ), Pink Lens ( L53 ), Single Asymmetric Lens ( L54 ), Double Asymmetric Lens ( L55 )
- Covered by U.S. PATENTS and Patents Pending
| Series | ELK07 |
| Wattage | 10.5W |
| Lumens | 730 lm - 860 lm |
| Voltage | 120V |
| Color Temp. | 2400K - 4000K |
| Dimmable | Triac/ELV |
| Lamp Type | LED |
| Beam Angle | 18° - 90° (38° standard) |
| CRI | 95 |
| Wet Location | cUL Listed w/Wet Location Trim |
| Damp Location | cUL Listed |
Catalog Numbers
Click a catalog number to open its own page with the price, specs and spec sheet for that exact module.
| Catalog Number | Wattage | CCT | Lumens | Voltage | Dimming | Beam Angle | Spec Sheet |
|---|---|---|---|---|---|---|---|
| ELK0724-S | 10.5W | 2400K | 730 lm | 120V | Triac/ELV | 18° | |
| ELK0724-N | 10.5W | 2400K | 730 lm | 120V | Triac/ELV | 25° | |
| ELK0724 | 10.5W | 2400K | 730 lm | 120V | Triac/ELV | 38° | |
| ELK0724-W | 10.5W | 2400K | 730 lm | 120V | Triac/ELV | 60° | |
| ELK0727-S | 10.5W | 2700K | 770 lm | 120V | Triac/ELV | 18° | |
| ELK0727-N | 10.5W | 2700K | 770 lm | 120V | Triac/ELV | 25° | |
| ELK0727 | 10.5W | 2700K | 770 lm | 120V | Triac/ELV | 38° | |
| ELK0727-W | 10.5W | 2700K | 770 lm | 120V | Triac/ELV | 60° | |
| ELK0727-E | 10.5W | 2700K | 770 lm | 120V | Triac/ELV | 90° | |
| ELK0730-S | 10.5W | 3000K | 800 lm | 120V | Triac/ELV | 18° | |
| ELK0730-N | 10.5W | 3000K | 800 lm | 120V | Triac/ELV | 25° | |
| ELK0730 | 10.5W | 3000K | 800 lm | 120V | Triac/ELV | 38° | |
| ELK0730-W | 10.5W | 3000K | 800 lm | 120V | Triac/ELV | 60° | |
| ELK0735-S | 10.5W | 3500K | 830 lm | 120V | Triac/ELV | 18° | |
| ELK0735-N | 10.5W | 3500K | 830 lm | 120V | Triac/ELV | 25° | |
| ELK0735 | 10.5W | 3500K | 830 lm | 120V | Triac/ELV | 38° | |
| ELK0735-W | 10.5W | 3500K | 830 lm | 120V | Triac/ELV | 60° | |
| ELK0740 | 10.5W | 4000K | 860 lm | 120V | Triac/ELV | 38° | |
| ELK0740-W | 10.5W | 4000K | 860 lm | 120V | Triac/ELV | 60° |
| Brand | ELCO Lighting |
| SKU | ELK0724-S |
| Type | LED Retrofit |
| Color Temperature | 2400K, 2700K, 3000K, 3500K, 4000K |
| Beam Angle | 18°, 25°, 38°, 60°, 90° |
