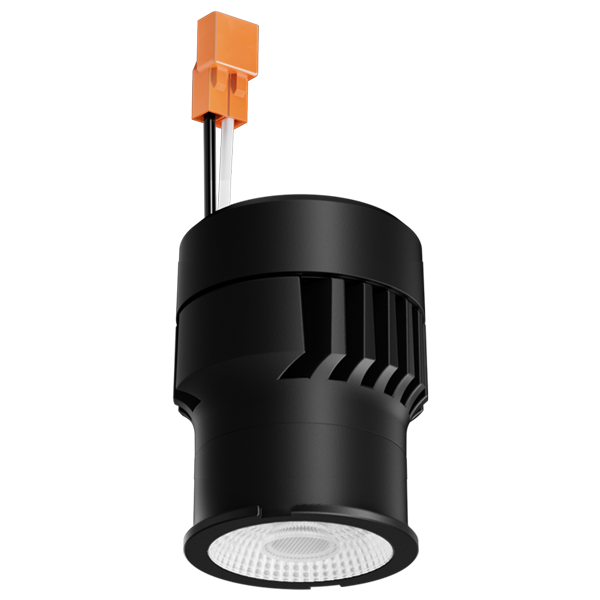

Koto™ LED Module ELK09 Series – 10.5W, 900–1100 lm
Koto™ LED Module ELK09 Series – 10.5W, 900–1100 lmKoto™ LED Module ELK09 Series – 10.5W, 900–1100 lm
ELCO Lighting

Koto™ LED Module ELK09 Series – 10.5W, 900–1100 lm

ELCO LightingModel / SKU: ELK0924-N
LED Retrofit
$95.44
$95.44 each
Key specs
Wattage10.5W
Color temp (CCT)2400K/2700K/3000K/3500K/4000K/Sunset
Get a quote
Spec Sheet & Documents
Download Spec Sheet (PDF)

Works with 2″, 3″, 4″, 5" & 6" Recessed Housings and Koto™ Trims

  • Integrated 120V Dimmable Driver Triac/ELV
  • Excellent color rendering 95+ CRI
  • Sunset Module ELK09SD starts from 3000K and dims to 1800K
  • Works in 2″, 3″, 4″ and 6″ ELCO housings with Koto™ twist-on
  • Energy Star Certified
  • Title 24 JA8-2019 Compliant
  • Standard 38° Lens installed, 25° and 60° lens included with each module - Optional Lens: 18° (EP731C), 90° (EP739C)
  • Optional: Louver ( L45 ), Linear Lens ( L46 ), Spread Lens ( L47 ), Clear Lens ( L48 ), Frosted Lens ( L49 ), Snoot ( L50 ), Color Shifter ( L51 ), Blue Lens ( L52 ), Pink Lens ( L53 ), Single Asymmetric Lens ( L54 ), Double Asymmetric Lens ( L55 )
  • Covered by U.S. PATENTS and Patents Pending
Series ELK09
Wattage 10.5W
Lumens 900 lm - 1100 lm
Voltage 120V
Color Temp. 2400K - 4000K, Sunset
Dimmable Triac/ELV
Lamp Type LED
Beam Angle 18° - 90° (38° standard)
CRI 95
Wet Location cUL Listed w/Wet Location Trim
Damp Location cUL Listed

Catalog Numbers

Click a catalog number to open its own page with the price, specs and spec sheet for that exact module.

Catalog Number Wattage CCT Lumens Voltage Dimming Beam Angle Spec Sheet
ELK0924-N 10.5W 2400K 900 lm 120V Triac/ELV 25° PDF
ELK0924 10.5W 2400K 900 lm 120V Triac/ELV 38° PDF
ELK0924-W 10.5W 2400K 900 lm 120V Triac/ELV 60° PDF
ELK0924-E 10.5W 2400K 900 lm 120V Triac/ELV 90° PDF
ELK0927-S 10.5W 2700K 940 lm 120V Triac/ELV 18° PDF
ELK0927-N 10.5W 2700K 940 lm 120V Triac/ELV 25° PDF
ELK0927 10.5W 2700K 940 lm 120V Triac/ELV 38° PDF
ELK0927-W 10.5W 2700K 940 lm 120V Triac/ELV 60° PDF
ELK0927-E 10.5W 2700K 940 lm 120V Triac/ELV 90° PDF
ELK0930-S 10.5W 3000K 990 lm 120V Triac/ELV 18° PDF
ELK0930-N 10.5W 3000K 990 lm 120V Triac/ELV 25° PDF
ELK0930 10.5W 3000K 990 lm 120V Triac/ELV 38° PDF
ELK0930-W 10.5W 3000K 990 lm 120V Triac/ELV 60° PDF
ELK0930-E 10.5W 3000K 990 lm 120V Triac/ELV 90° PDF
ELK0935-N 10.5W 3500K 1040 lm 120V Triac/ELV 25° PDF
ELK0935 10.5W 3500K 1040 lm 120V Triac/ELV 38° PDF
ELK0935-W 10.5W 3500K 1040 lm 120V Triac/ELV 60° PDF
ELK0940-S 10.5W 4000K 1100 lm 120V Triac/ELV 18° PDF
ELK0940 10.5W 4000K 1100 lm 120V Triac/ELV 38° PDF
ELK0940-W 10.5W 4000K 1100 lm 120V Triac/ELV 60° PDF
ELK09SD-S 10.5W Sunset 940 lm 120V Triac/ELV 18° PDF
ELK09SD-N 10.5W Sunset 940 lm 120V Triac/ELV 25° PDF
ELK09SD 10.5W Sunset 940 lm 120V Triac/ELV 38° PDF
ELK09SD-W 10.5W Sunset 940 lm 120V Triac/ELV 60° PDF
ELK09SD-E 10.5W Sunset 940 lm 120V Triac/ELV 90° PDF

View Full Specifications (PDF)
