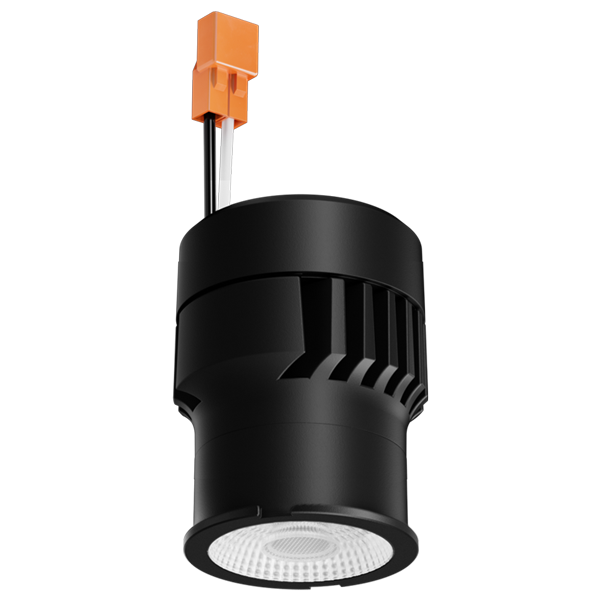

Koto™ LED Module ELK13 Series – 12.5W, 1250–1400 lm
Model / SKU: ELK1327-S$122.67
$122.67 each
| Wattage | 12.5W |
|---|---|
| Color temp (CCT) | 2700K/3000K/3500K/4000K |
Spec Sheet & Documents
Download Spec Sheet (PDF)- 🚚 Free shipping on orders $999+
- ↩ 30-day returns (see policy)
Works with 2″, 3″, 4″, 5" & 6" Recessed Housings and Koto™ Trims
- Integrated 120V Dimmable Driver Triac/ELV
- Excellent color rendering 95+ CRI
- Works in 2″, 3″, 4″ and 6″ ELCO housings with Koto™ twist-on
- Energy Star Certified
- Title 24 JA8-2019 Compliant
- Standard 38° Lens installed, 25° and 60° lens included with each module - Optional Lens: 18° (EP731C), 90° (EP739C)
- Optional: Louver ( L45 ), Linear Lens ( L46 ), Spread Lens ( L47 ), Clear Lens ( L48 ), Frosted Lens ( L49 ), Snoot ( L50 ), Color Shifter ( L51 ), Blue Lens ( L52 ), Pink Lens ( L53 ), Single Asymmetric Lens ( L54 ), Double Asymmetric Lens ( L55 )
- Covered by U.S. PATENTS and Patents Pending
| Series | ELK13 |
| Wattage | 12.5W |
| Lumens | 1250 lm - 1400 lm |
| Voltage | 120V |
| Color Temp. | 2700K - 4000K |
| Dimmable | Triac/ELV |
| Lamp Type | LED |
| Beam Angle | 18° - 90° (38° standard) |
| CRI | 95 |
| Wet Location | cUL Listed w/Wet Location Trim |
| Damp Location | cUL Listed |
Catalog Numbers
Click a catalog number to open its own page with the price, specs and spec sheet for that exact module.
| Catalog Number | Wattage | CCT | Lumens | Voltage | Dimming | Beam Angle | Spec Sheet |
|---|---|---|---|---|---|---|---|
| ELK1327-S | 12.5W | 2700K | 1250 lm | 120V | Triac/ELV | 18° | |
| ELK1327-N | 12.5W | 2700K | 1250 lm | 120V | Triac/ELV | 25° | |
| ELK1327 | 12.5W | 2700K | 1250 lm | 120V | Triac/ELV | 38° | |
| ELK1327-W | 12.5W | 2700K | 1250 lm | 120V | Triac/ELV | 60° | |
| ELK1327-E | 12.5W | 2700K | 1250 lm | 120V | Triac/ELV | 90° | |
| ELK1330-S | 12.5W | 3000K | 1300 lm | 120V | Triac/ELV | 18° | |
| ELK1330-N | 12.5W | 3000K | 1300 lm | 120V | Triac/ELV | 25° | |
| ELK1330 | 12.5W | 3000K | 1300 lm | 120V | Triac/ELV | 38° | |
| ELK1330-W | 12.5W | 3000K | 1300 lm | 120V | Triac/ELV | 60° | |
| ELK1330-E | 12.5W | 3000K | 1300 lm | 120V | Triac/ELV | 90° | |
| ELK1335-N | 12.5W | 3500K | 1350 lm | 120V | Triac/ELV | 25° | |
| ELK1335 | 12.5W | 3500K | 1350 lm | 120V | Triac/ELV | 38° | |
| ELK1335-W | 12.5W | 3500K | 1350 lm | 120V | Triac/ELV | 60° | |
| ELK1335-E | 12.5W | 3500K | 1350 lm | 120V | Triac/ELV | 90° | |
| ELK1340-S | 12.5W | 4000K | 1400 lm | 120V | Triac/ELV | 18° | |
| ELK1340-N | 12.5W | 4000K | 1400 lm | 120V | Triac/ELV | 25° | |
| ELK1340 | 12.5W | 4000K | 1400 lm | 120V | Triac/ELV | 38° | |
| ELK1340-W | 12.5W | 4000K | 1400 lm | 120V | Triac/ELV | 60° | |
| ELK1340-E | 12.5W | 4000K | 1400 lm | 120V | Triac/ELV | 90° |
| Brand | ELCO Lighting |
| SKU | ELK1327-S |
| Type | LED Retrofit |
| Color Temperature | 2700K, 3000K, 3500K, 4000K |
| Beam Angle | 18°, 25°, 38°, 60°, 90° |
