Home › Leviton 16242-W 15 A 125 VAC Switches & Receptacle White

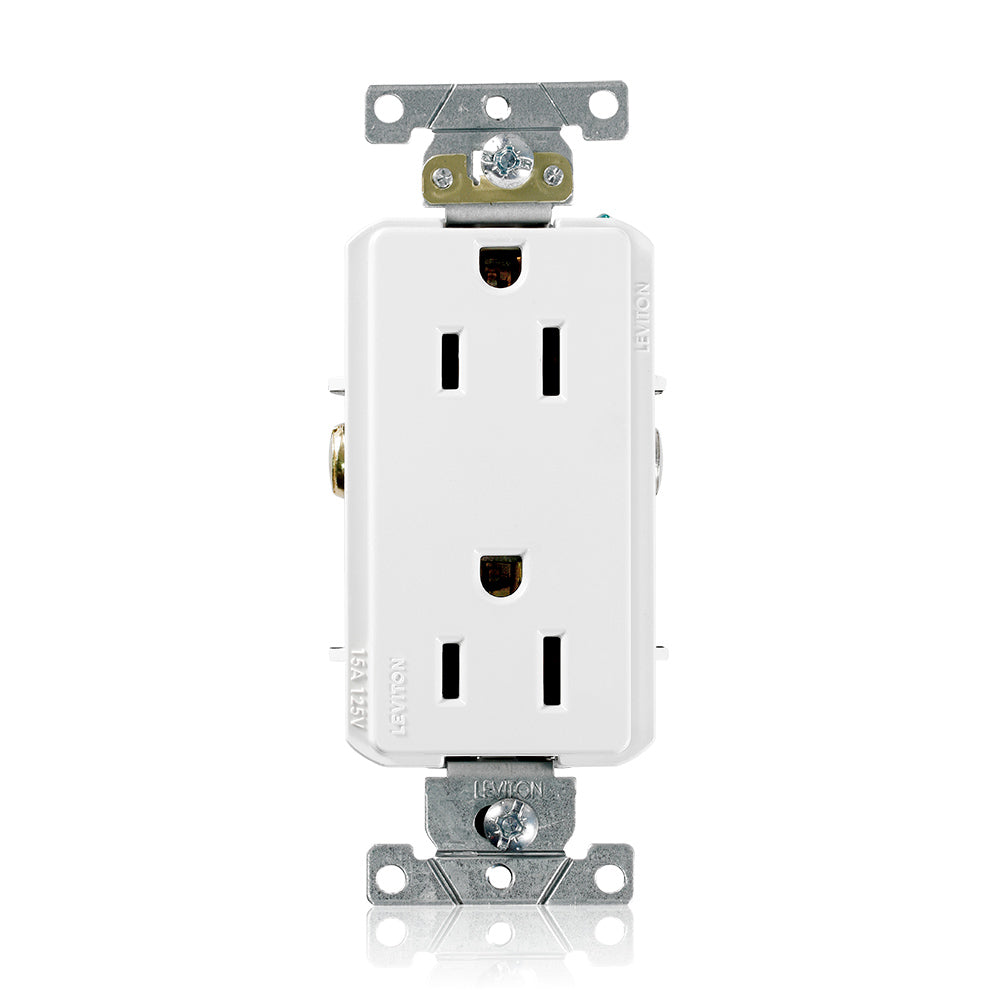

Leviton 16242-W 15 A 125 VAC Switches & Receptacle White
Model / SKU: 16242-W · UPC 07847778822$5.49
$5.49 each
Spec Sheet & Documents
Download Spec Sheet (PDF)- 🚚 Free shipping on orders $999+
- ↩ 30-day returns (see policy)
| Part Number | 16242-W |
| UPC | 07847778822 |
| Nema | 5-15R |
| RoHS Compliant | Yes |
| Amperage | 15 A |
| At Rated Voltage | 1/2 HP |
| Current Limiting | Full Rated Current |
| Dielectric Voltage | Withstands 3000V min |
| Grounding | Self-Grounding |
| Pole | 2 |
| Temperature Rise | Max 30°C temperature rise at full rated current |
| Voltage | 125 VAC |
| Wire | 3 |
| Flammability | Rated V-2 per UL 94 |
| Operating Temperature | -40°C to 60°C |
| Body Material | PBT Polyester Blend |
| Color | White |
| Face Material | PBT Polyester Blend |
| Ground Clips | Brass-Plated |
| Grounding Screw | #8 Hex Head, Triple-Drive Brass |
Heavy%20Duty%20Industrial%20Grade%20Decora%20Plus%20Product%20Bulletin%20Q-1129.pdf
| Brand | Leviton |
| SKU | 16242-W |
| UPC | 07847778822 |
| Type | Switches & Receptacles |
| Title | Default Title |
