Home › Leviton 16251 15 A 125 VAC Switches & Receptacle Brown

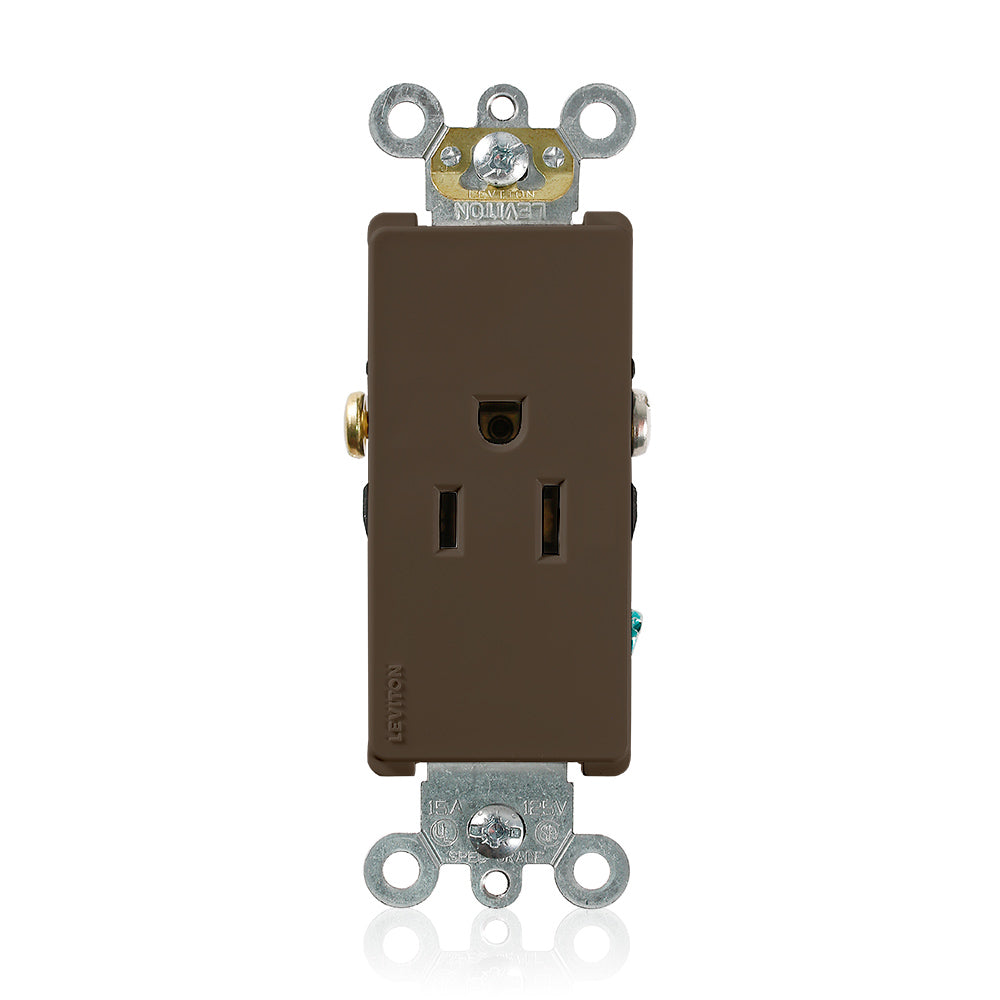

Leviton 16251 15 A 125 VAC Switches & Receptacle Brown
Model / SKU: 16251 · UPC 07847747330$7.55
$7.55 each
Spec Sheet & Documents
Download Spec Sheet (PDF)- 🚚 Free shipping on orders $999+
- ↩ 30-day returns (see policy)
| Part Number | 16251 |
| UPC | 07847747330 |
| Nema | 5-15R |
| At Rated Voltage | 1/2 HP |
| Amperage | 15 A |
| Current Limiting | Full Rated Current |
| Dielectric Voltage | Withstands 2000V per UL498 |
| Grounding | Self-Grounding |
| Pole | 2 |
| Temperature Rise | Max 30C after 250 cycles OL at 200 percent rated current |
| Voltage | 125 VAC |
| Wire | 3 |
| Flammability | Rated V-2 per UL 94 |
| Operating Temperature | -40°C to 60°C |
| Body Material | Thermoplastic Nylon |
| Clamp Nuts | Zinc-Plated Steel |
| Face Material | Thermoplastic Nylon |
| Ground Clips | Brass-Plated |
| Grounding Screw | Brass 8-32 |
| Line Contacts | Brass Triple-Wipe .031 Thick |
Straight%20Blade%20Receptacle%20Catalog%20Q-1101H.pdf
- Certifications & Listings: UL Listed
| Brand | Leviton |
| SKU | 16251 |
| UPC | 07847747330 |
| Type | Switches & Receptacles |
