Home › Leviton 16252-LE 15 A 125 VAC Switches & Receptacle Black

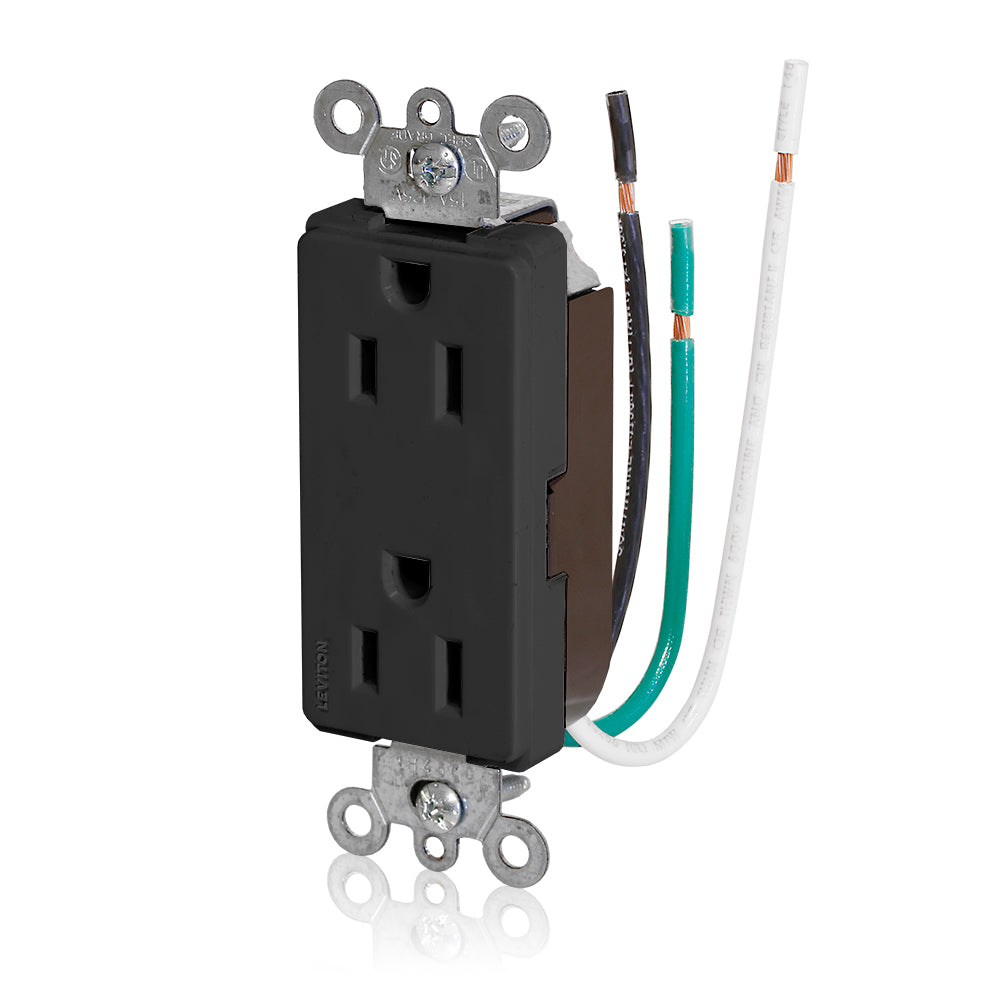

Leviton 16252-LE 15 A 125 VAC Switches & Receptacle Black
Model / SKU: 16252-LE · UPC 07847730052$10.24
$10.24 each
Spec Sheet & Documents
Download Spec Sheet (PDF)- 🚚 Free shipping on orders $999+
- ↩ 30-day returns (see policy)
| Part Number | 16252-LE |
| UPC | 07847730052 |
| Nema | 5-15R |
| Amperage | 15 A |
| Current Interrupting | Certified for current interrupting at full rated current |
| Dielectric Voltage Withstand | 2000V minimum per UL 498 |
| Grounding | Self-Grounding |
| Maximum Working Voltage | 125V as rated |
| Pole | 2 |
| Temperature Rise | Max 30C after 100 cycles OL at 150 percent rated current |
| Voltage | 125 VAC |
| Wire | 3 |
| Flammability | Rated V-2 per UL 94 |
| Operating Temperature | -40°C to 60°C |
| Base Material | Thermoplastic |
| Cover Material | Thermoplastic |
| Grounding Leads | 6", #12 AWG THHN |
| Mounting Screws | Triple Combination Head, Steel |
| Mounting Strap | Steel multipiece with 2 drive pins |
| Power Contacts | Brass, triple wipe |
Straight%20Blade%20Receptacle%20Catalog%20Q-1101H.pdf
Leaded%20Receptacles,%20GFCIs%20and%20Switches%20Product%20Bulletin%20Q-1133A.pdf
| Brand | Leviton |
| SKU | 16252-LE |
| UPC | 07847730052 |
| Type | Switches & Receptacles |
