Home › Leviton 16341-E 20 A 125 VAC Switches & Receptacle Black

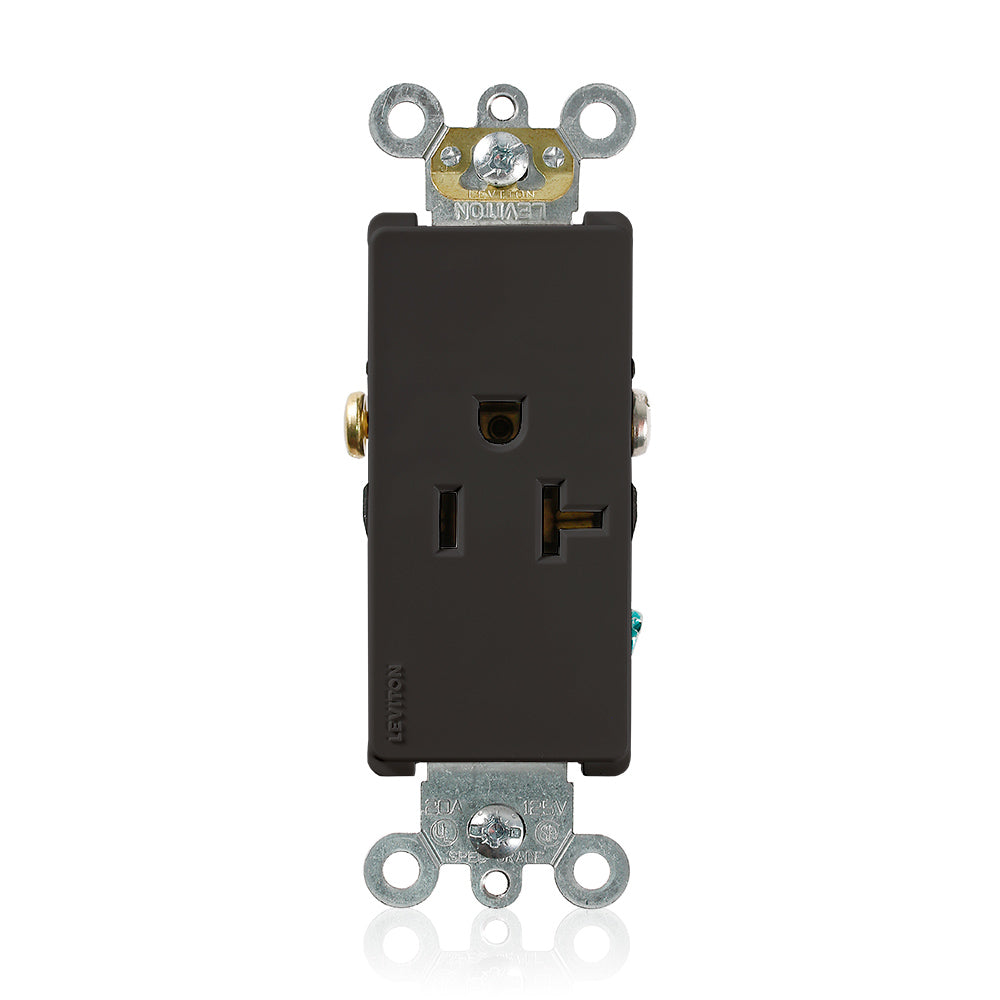

Leviton 16341-E 20 A 125 VAC Switches & Receptacle Black
Model / SKU: 16341-E · UPC 07847703300$6.71
$6.71 each
Spec Sheet & Documents
Download Spec Sheet (PDF)- 🚚 Free shipping on orders $999+
- ↩ Easy returns
| Part Number | 16341-E |
| UPC | 07847703300 |
| RoHS Compliant | Yes |
| Amperage | 20 A |
| Current Limiting | Full Rated Current |
| Dielectric Voltage | Withstands 2000V per UL498 |
| Grounding | Self grounding |
| Pole | 1 |
| Screw Terminal Torque | 14-18 in-lbs |
| Temperature Rise | Max 30C after 250 cycles OL at 200 percent rated current |
| Voltage | 125 VAC |
| Wire | 2 |
| Flammability | Rated V-2 per UL 94 |
| Clamp Nuts | Thermoplastic Nylon |
| Color | Black |
| Face Material | Thermoplastic Nylon |
| Ground Clips | Brass-Plated |
| Grounding Screw | Brass 8-32 |
| Line Contacts | Brass Triple-Wipe .031 Thick |
| Product ID | Ratings are permanently marked on device |
| Brand | Leviton |
| SKU | 16341-E |
| UPC | 07847703300 |
| Type | Switches & Receptacles |
| Title | Default Title |
Free ground shipping on orders over $999. Most in-stock items ship within 1–2 business days. Large or freight orders: contact us for a quote.
