Home › Leviton 16352-1PW 20 A 125 VAC Switches & Receptacle White

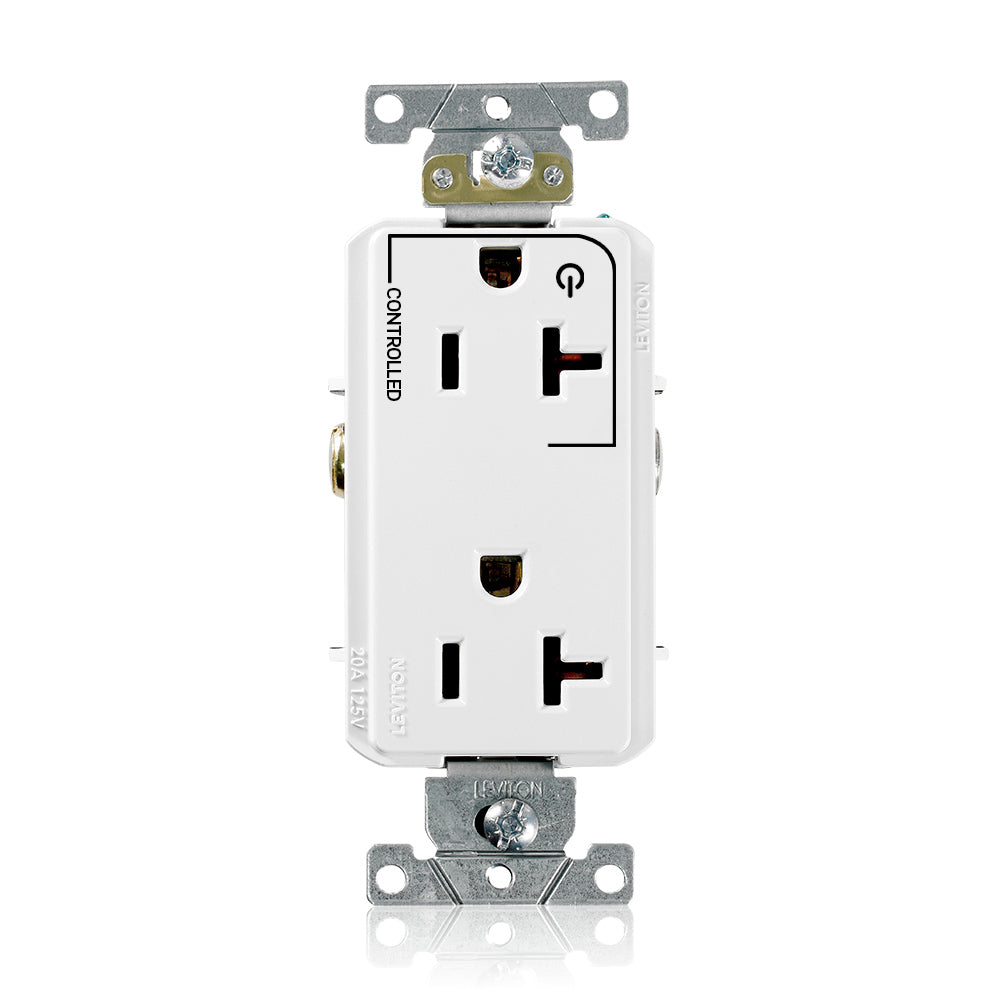

Leviton 16352-1PW 20 A 125 VAC Switches & Receptacle White
Model / SKU: 16352-1PW · UPC 07847770485$13.14
$13.14 each
Spec Sheet & Documents
Download Spec Sheet (PDF)- 🚚 Free shipping on orders $999+
- ↩ Easy returns
| Part Number | 16352-1PW |
| UPC | 07847770485 |
| Nema | 5-20R |
| RoHS Compliant | Yes |
| At Rated Voltage | 1 HP |
| Amperage | 20 A |
| Dielectric Voltage | Withstands 2000V per UL498 |
| Grounding | Self-Grounding |
| Temperature Rise | Max 30C after 250 cycles OL at 200 percent rated current |
| Voltage | 125 VAC |
| Operating Temperature | -40°C to 75°C |
| Body Material | Nylon |
| Face Material | Nylon |
| Ground Clips | Brass |
| Grounding Screw | Zinc-Plated Steel 8-32 |
| Line Contacts | Brass Triple-Wipe .031 Thick |
| Strap Material | Zinc-Plated Steel 0.042 |
| Terminal Clamp | Zinc-Plated Steel |
| Terminal Screws | Brass 10-32 |
| Product ID | Ratings are permanently marked on device |
Heavy%20Duty%20Industrial%20Grade%20Decora%20Plus%20Product%20Bulletin%20Q-1129.pdf
| Brand | Leviton |
| SKU | 16352-1PW |
| UPC | 07847770485 |
| Type | Switches & Receptacles |
| Title | Default Title |
