Home › Leviton 16352-2PW 20 A 125 VAC Switches & Receptacle White

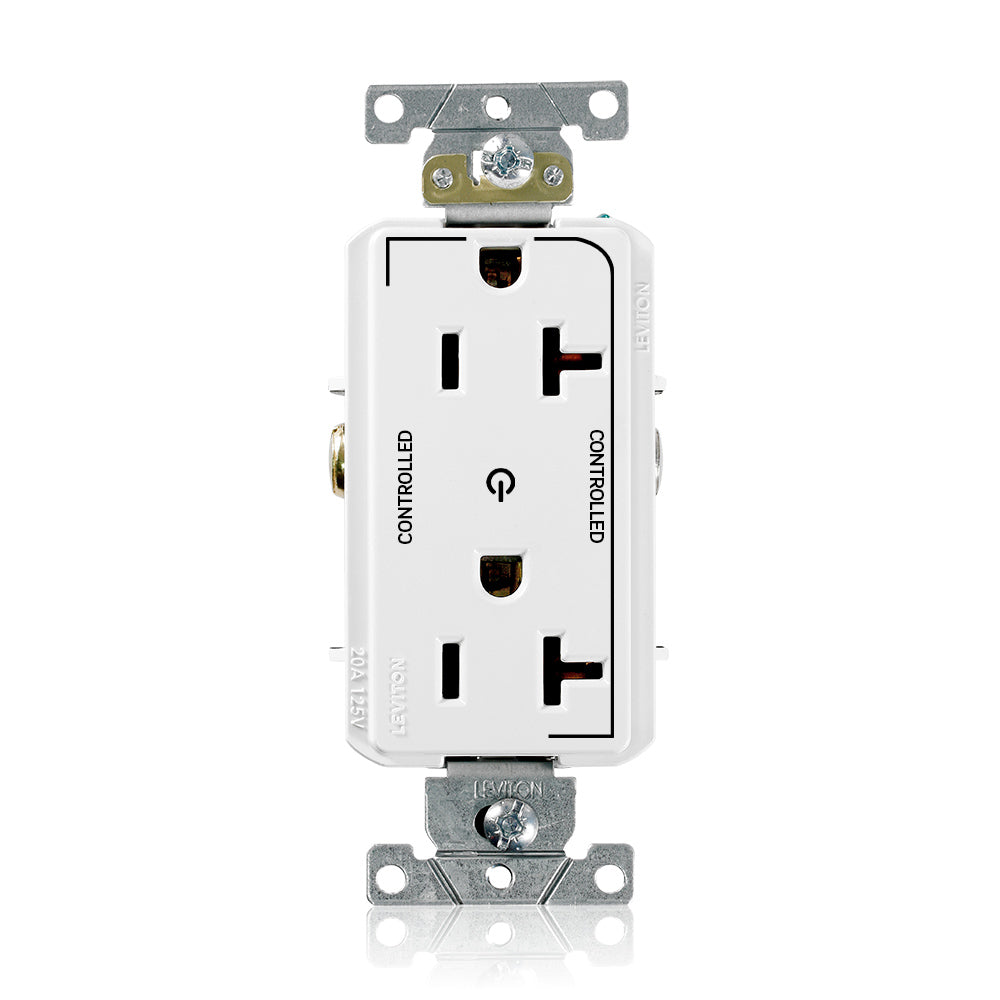

Leviton 16352-2PW 20 A 125 VAC Switches & Receptacle White
Model / SKU: 16352-2PW · UPC 07847770501$12.53
$12.53 each
Spec Sheet & Documents
Download Spec Sheet (PDF)- 🚚 Free shipping on orders $999+
- ↩ 30-day returns (see policy)
| Part Number | 16352-2PW |
| UPC | 07847770501 |
| Nema | 5-20R |
| RoHS Compliant | Yes |
| At Rated Voltage | 1 HP |
| Amperage | 20 A |
| Dielectric Voltage | Withstands 2000V per UL498 |
| Grounding | Self-Grounding |
| Temperature Rise | Max 30C after 250 cycles OL at 200 percent rated current |
| Voltage | 125 VAC |
| Operating Temperature | -40°C to 75°C |
| Body Material | Nylon |
| Face Material | Nylon |
| Ground Clips | Brass |
| Grounding Screw | Zinc-Plated Steel 8-32 |
| Line Contacts | Brass Triple-Wipe .031 Thick |
| Strap Material | Zinc-Plated Steel 0.042 |
| Terminal Clamp | Zinc-Plated Steel |
| Terminal Screws | Brass 10-32 |
| Product ID | Ratings are permanently marked on device |
Heavy%20Duty%20Industrial%20Grade%20Decora%20Plus%20Product%20Bulletin%20Q-1129.pdf
Straight%20Blade%20Receptacle%20Catalog%20Q-1101H.pdf
- Certifications & Listings: UL Listed
| Brand | Leviton |
| SKU | 16352-2PW |
| UPC | 07847770501 |
| Type | Switches & Receptacles |
| Title | Default Title |
Free ground shipping on orders over $999. Orders ship direct from the manufacturer or distributor warehouse, typically within 2–5 business days, then 2–7 business days in transit. Contiguous U.S. only. Freight orders are quoted before you are charged. See our shipping policy and 30-day return policy.
