Home › Leviton 16352-CI 20 A 125 VAC Switches & Receptacle

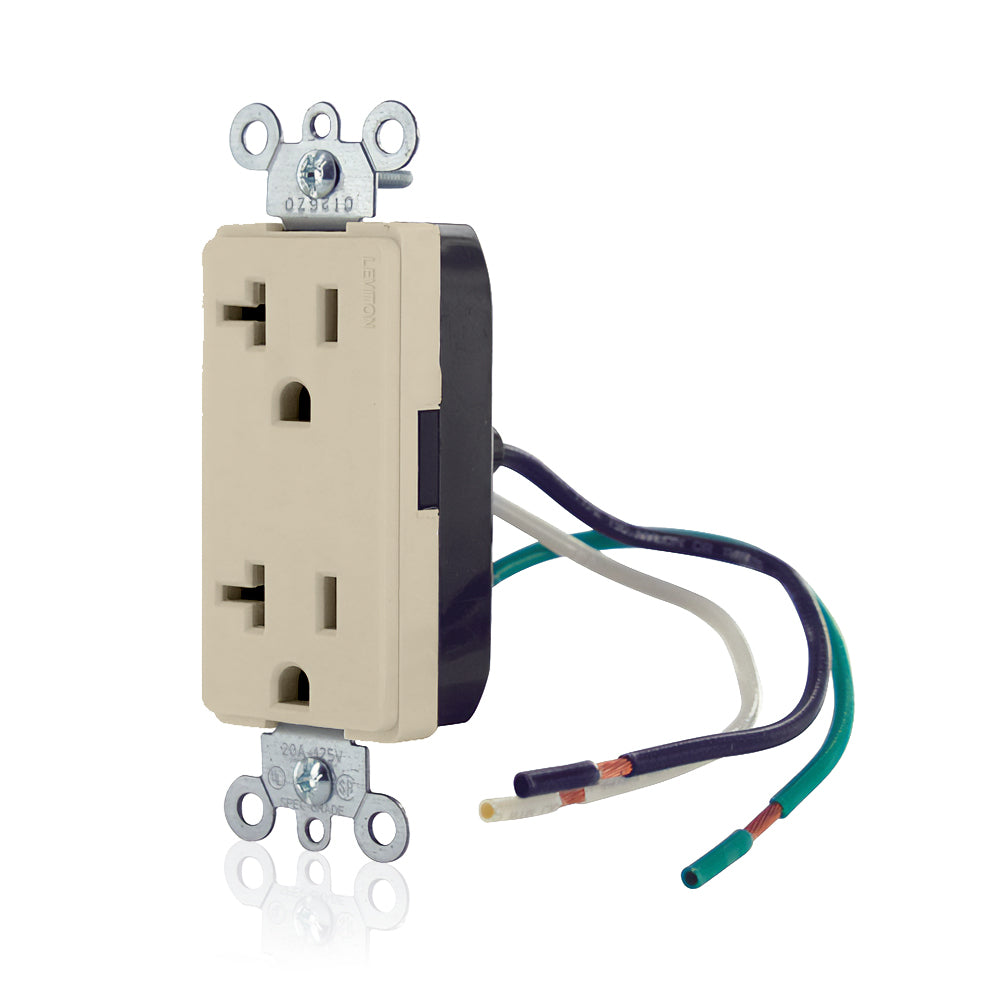

Leviton 16352-CI 20 A 125 VAC Switches & Receptacle
Model / SKU: 16352-CI · UPC 07847739977$14.18
$14.18 each
Spec Sheet & Documents
Download Spec Sheet (PDF)- 🚚 Free shipping on orders $999+
- ↩ Easy returns
| Part Number | 16352-CI |
| UPC | 07847739977 |
| At Rated Voltage | 1 HP |
| Amperage | 20 A |
| Current Limiting | Full Rated Current |
| Dielectric Voltage | Withstands 2000V per UL498 |
| Grounding | Self-Grounding |
| NEMA | WD-1, WD-6 |
| Pole | 2 |
| Temperature Rise | Max 30C after 250 cycles OL at 200 percent rated current |
| Voltage | 125 VAC |
| Wire | 3 |
| Flammability | Rated V-2 per UL 94 |
| Body Material | Thermoplastic Nylon |
| Clamp Nuts | Zinc-Plated Steel |
| Face Material | Thermoplastic Nylon |
| Ground Clips | Brass-Plated |
| Grounding Screw | Brass 10-32 |
| Line Contacts | Brass Triple-Wipe .031 Thick |
| Strap Material | Zinc-Plated Steel |
Straight%20Blade%20Receptacle%20Catalog%20Q-1101H.pdf
Leaded%20Receptacles,%20GFCIs%20and%20Switches%20Product%20Bulletin%20Q-1133A.pdf
| Brand | Leviton |
| SKU | 16352-CI |
| UPC | 07847739977 |
| Type | Switches & Receptacles |
