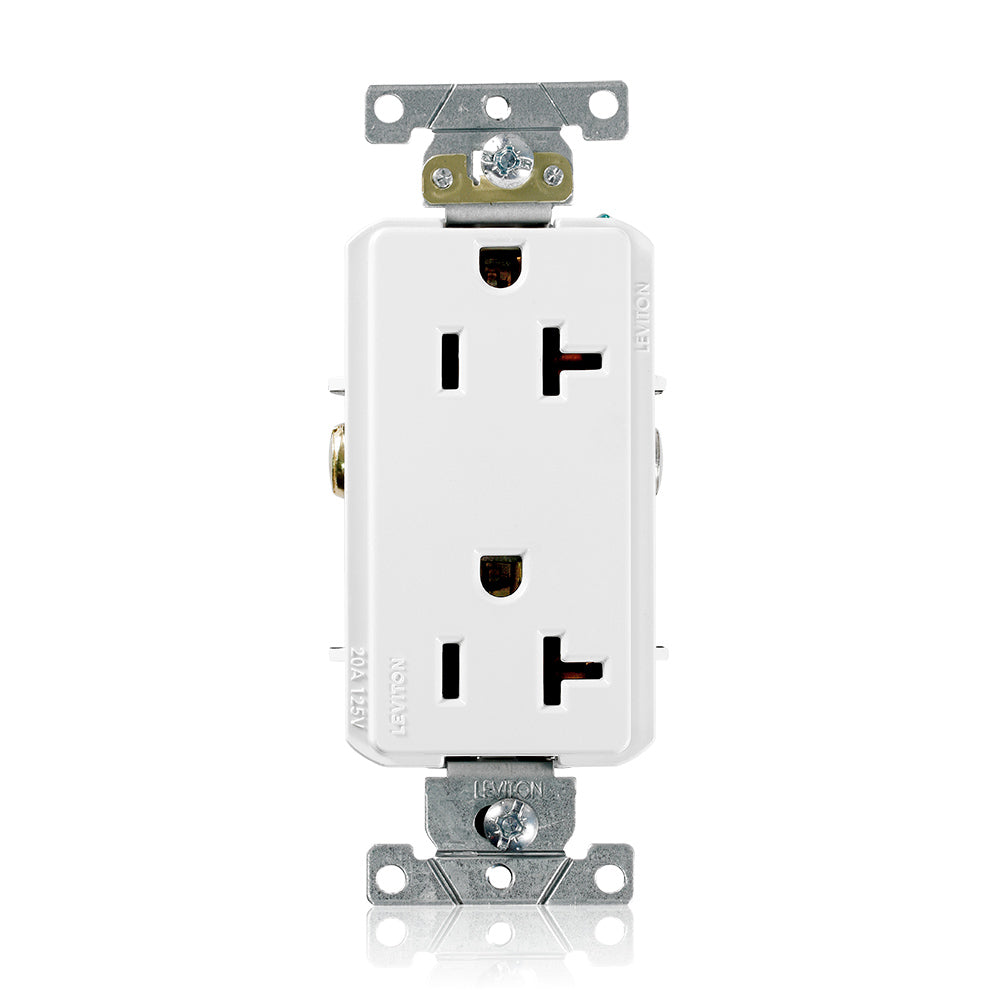

Leviton 16352-W 20 A 125 VAC Switches & Receptacle White
Model / SKU: 16352-W ยท UPC 07847781972$9.07
$9.07 each
Spec Sheet & Documents
Download Spec Sheet (PDF)- ๐ Free shipping on orders $999+
- โฉ 30-day returns (see policy)
| Part Number | 16352-W |
| UPC | 07847781972 |
| Nema | 5-20R |
| RoHS Compliant | Yes |
| At Rated Voltage | 1 HP |
| Amperage | 20 A |
| Current Limiting | Full Rated Current |
| Dielectric Voltage | Withstands 2000V per UL498 |
| Grounding | Self-Grounding |
| Temperature Rise | Max 30C after 250 cycles OL at 200 percent rated current |
| Voltage | 125 VAC |
| Body Material | Thermoplastic Nylon |
| Clamp Nuts | Zinc-Plated Steel |
| Color | White |
| Face Material | Thermoplastic Nylon |
| Ground Clips | Brass-Plated |
| Grounding Screw | Brass 8-32 |
| Line Contacts | Brass Triple-Wipe .031 Thick |
| Strap Material | Zinc-Plated Steel |
| Terminal Screws | Brass 10-32 |
Heavy_Duty_Industrial_Grade_Decora_Plus_Product_Bulletin_Q-1129.pdf
| Brand | Leviton |
| SKU | 16352-W |
| UPC | 07847781972 |
| Type | Switches & Receptacles |
| Title | Default Title |
