Home › Leviton 16462-W 20 A 250 VAC Switches & Receptacle White

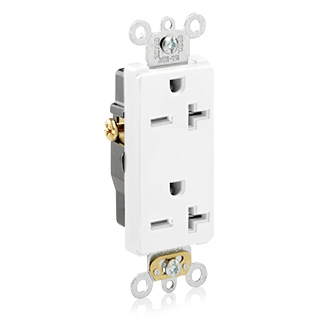

Leviton 16462-W 20 A 250 VAC Switches & Receptacle White
Model / SKU: 16462-W · UPC 07847781950$13.10
$13.10 each
Spec Sheet & Documents
Download Spec Sheet (PDF)- 🚚 Free shipping on orders $999+
- ↩ 30-day returns (see policy)
| Part Number | 16462-W |
| UPC | 07847781950 |
| Nema | 6-20R |
| At Rated Voltage | 1-1/2 HP |
| Amperage | 20 A |
| Current Limiting | Full Rated Current |
| Dielectric Voltage | Withstands 2000V per UL498 |
| Grounding | Self-Grounding |
| Pole | 2 |
| Temperature Rise | Max 30C after 250 cycles OL at 200 percent rated current |
| Voltage | 250 VAC |
| Wire | 3 |
| Flammability | Rated V-2 per UL 94 |
| Operating Temperature | -40°C to 60°C |
| Body Material | Thermoplastic Nylon |
| Clamp Nuts | Zinc-Plated Steel |
| Color | White |
| Face Material | Thermoplastic Nylon |
| Ground Clips | Brass-Plated |
| Grounding Screw | Brass 8-32 |
| Brand | Leviton |
| SKU | 16462-W |
| UPC | 07847781950 |
| Type | Switches & Receptacles |
| Title | Default Title |
Free ground shipping on orders over $999. Orders ship direct from the manufacturer or distributor warehouse, typically within 2–5 business days, then 2–7 business days in transit. Contiguous U.S. only. Freight orders are quoted before you are charged. See our shipping policy and 30-day return policy.
