Home โบ Leviton 223-W 15 Amp, 125 Volt, NEMA 1-15R, 2P, 2W, With Ears Duplex Receptacle, Straight Blade, Residential Grade

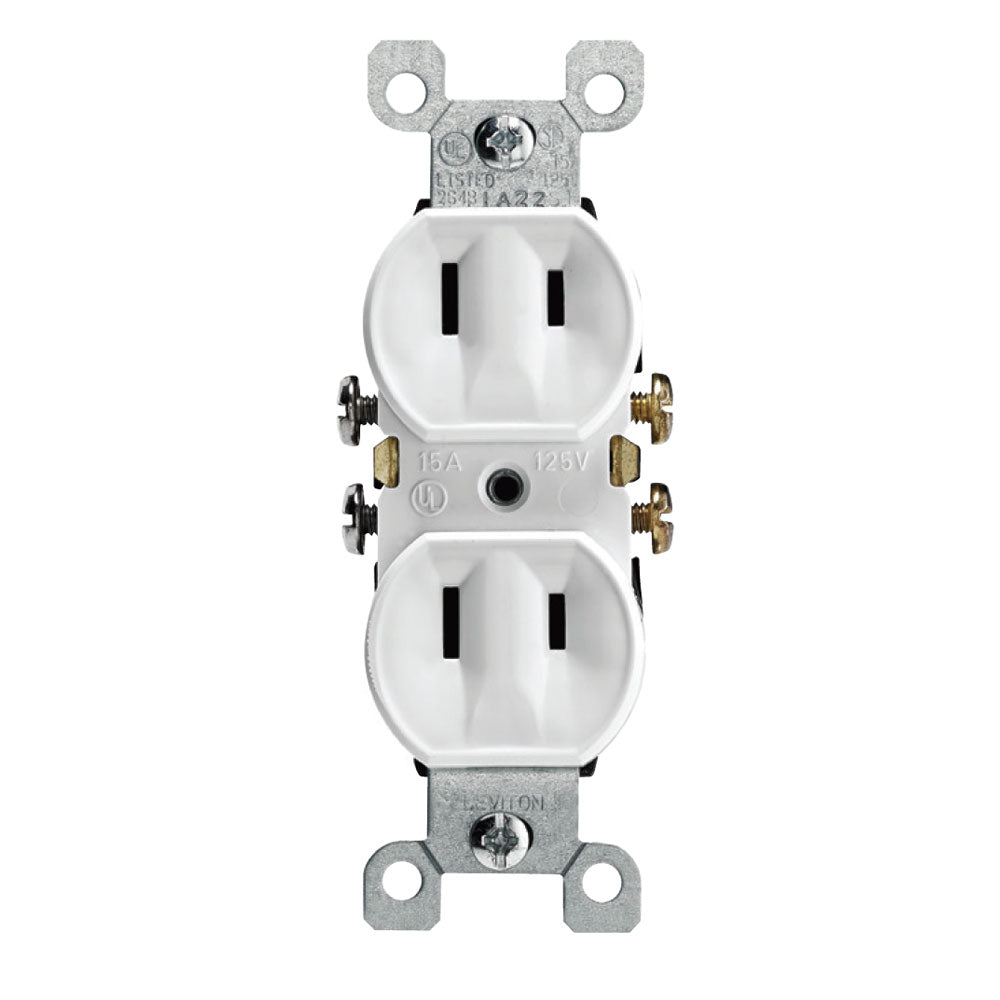

Leviton 223-W 15 Amp, 125 Volt, NEMA 1-15R, 2P, 2W, With Ears Duplex Receptacle, Straight Blade, Residential Grade
Model / SKU: 223-W ยท UPC 07847779372$3.46
$3.46 each
Spec Sheet & Documents
Download Spec Sheet (PDF)- ๐ Free shipping on orders $999+
- โฉ 30-day returns (see policy)
White - 15 Amp, 125 Volt, NEMA 1-15R, 2P, 2W, With Ears Duplex Receptacle, Straight Blade, Residential Grade, Non-Grounding, Side Wired, Steel Strap
| Part Number | 223-W |
| UPC | 07847779372 |
| Nema | 1-15R |
| RoHS Compliant | Yes |
| Amperage | 15 A |
| Body Material | Thermoplastic |
| Color | White |
| Face Material | Thermoplastic |
| Grounding | Non-Grounding |
| NEMA | 1-15R |
| Pole | 2 |
| Standards and Certifications | UL |
| Strap Material | Steel |
| Termination | Side |
| Torque Range | 14 โ 18 in.-lbs |
| Type | Duplex Receptacle |
| Voltage | 125 VAC |
| Warranty | 2-Year Limited |
| Wire | 2 |
| Brand | Leviton |
| SKU | 223-W |
| UPC | 07847779372 |
| Type | Switches & Receptacles |
| Title | Default Title |
