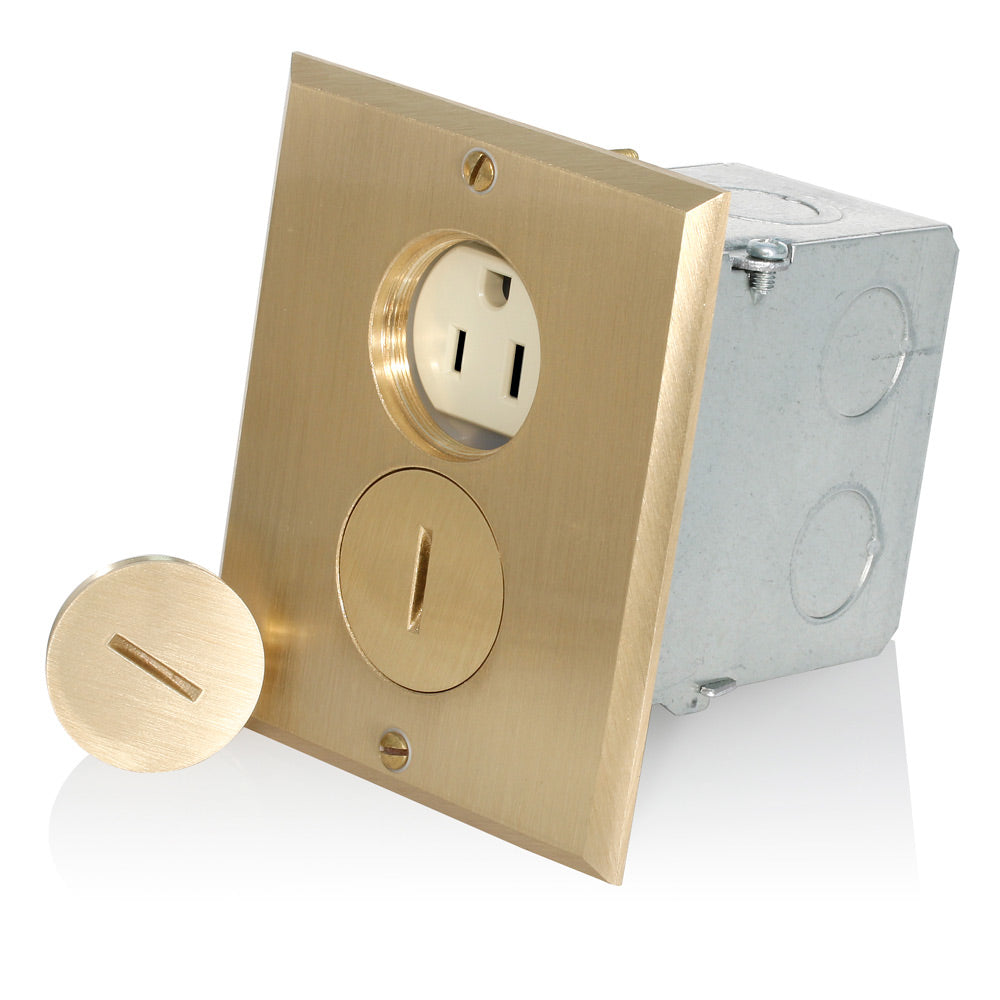

Home › Leviton 25249-FBA 25249-FBA, product, leviton, 1-gang, 1 gang, floor box, receptacle assembly, 15 amp 15a, 125 volt, 125v, nema
Leviton 25249-FBA 25249-FBA, product, leviton, 1-gang, 1 gang, floor box, receptacle assembly, 15 amp 15a, 125 volt, 125v, nema
Leviton

Leviton 25249-FBA 25249-FBA, product, leviton, 1-gang, 1 gang, floor box, receptacle assembly, 15 amp 15a, 125 volt, 125v, nema

LevitonModel / SKU: 25249-FBA · UPC 07847716359
Wall Plates
$92.95
$92.95 each
Get a quote
Spec Sheet & Documents
Download Spec Sheet (PDF)

25249-FBA, product, leviton, 1-gang, 1 gang, floor box, receptacle assembly, 15 amp 15a, 125 volt, 125v, nema 5-15r, 5-15r, tamper-resistant, duplex receptacle, straight blade, self grounding, steel strap

Part Number 25249-FBA
UPC 07847716359
Nema 5-15R
At Rated Voltage 1/2 HP
Amperage 15 A
Current Limiting Full Rated Current
Dielectric Voltage Withstands 2000V per UL498
Grounding Self Grounding
Pole 2
Temperature Rise Max 30C after 50 cycles OL at 150 percent rated current
Voltage 125 VAC
Wire 3
Flammability Rated V-2 per UL 94
Operating Temperature -40°C to 60°C
Body Material Nylon
Clamp Nuts Zinc-Plated Steel
Color Ivory
Face Material Nylon
Floorplate Material Solid Brass 0.060 In Thick
Ground Clips Brass-Plated

PK-93600-10-00-0G-W.pdf

PK-93600-10-04-0G-W.pdf

PK-93600-10-05-0G-W.pdf

PK-93600-10-05-0E-W.pdf

Product page on leviton.com
