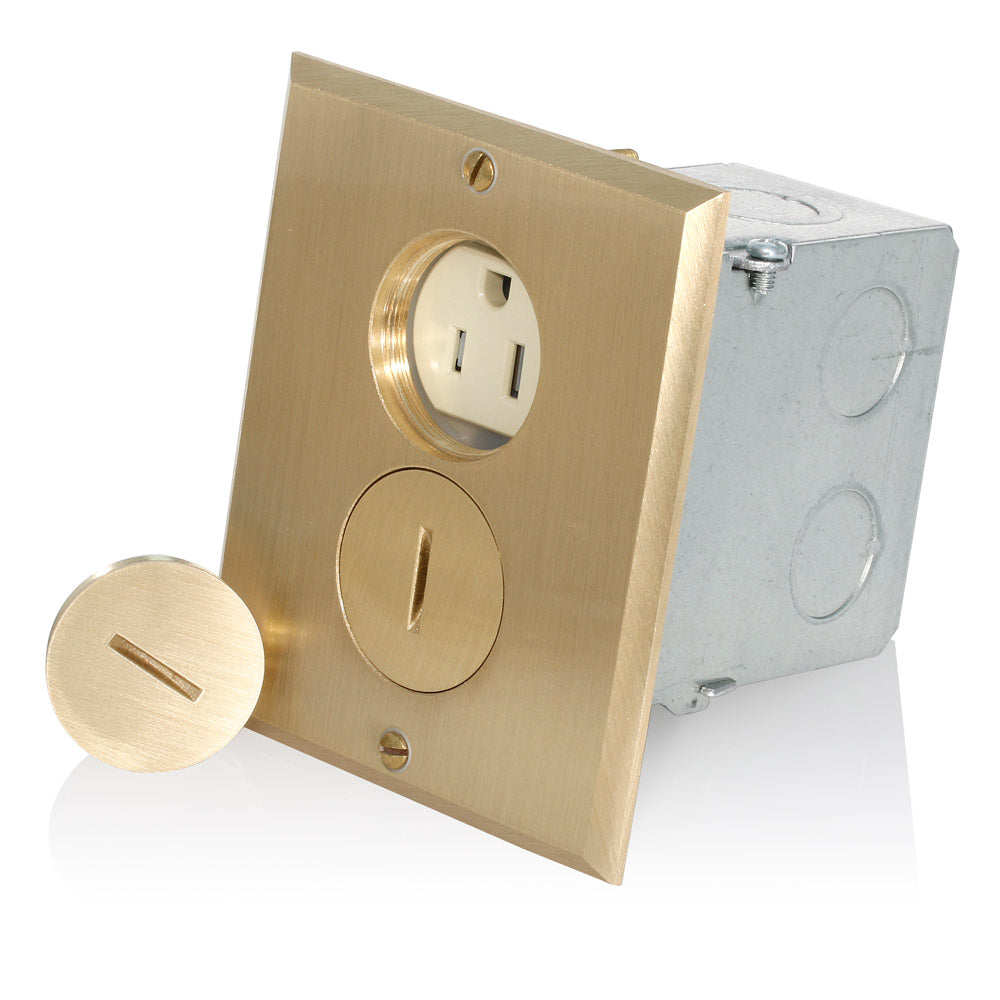

Leviton 25249-TFB 1-Gang Floor Box Receptacle Assembly, 15 Amp, 125 Volt, NEMA 5-15R, 2P, 3W, Tamper-Resistant Duplex
Model / SKU: 25249-TFB · UPC 07847741152$94.05
$94.05 each
Spec Sheet & Documents
Download Spec Sheet (PDF)- 🚚 Free shipping on orders $999+
- ↩ Easy returns
Ivory - 1-Gang Floor Box Receptacle Assembly, 15 Amp, 125 Volt, NEMA 5-15R, 2P, 3W, Tamper-Resistant Duplex Receptacle, Straight Blade, Commercial Grade, Self Grounding, Steel Strap, Brass-Finish Plate, Floorbox, Floorboxes, Floor Boxes, Floor box, Floor plate, Floor plates, Concrete floor box, Cover plate, Floor outlet, Floor outlet box, In-floor outlet, In floor outlet, Floorbox kit, PVC floor box, Floor box plates, Floor box cover plates, Floor lids, Floor box lids, Floor outlet plates, Floorbox cover
| Part Number | 25249-TFB |
| UPC | 07847741152 |
| Nema | 5-15R |
| At Rated Voltage | 1/2 HP |
| Amperage | 15 A |
| Current Limiting | Full Rated Current |
| Dielectric Voltage | Withstands 2000V per UL498 |
| Grounding | Self-Grounding |
| Pole | 2 |
| Temperature Rise | Max 30C after 50 cycles OL at 150 percent rated current |
| Voltage | 125 VAC |
| Wire | 3 |
| Flammability | Rated V-2 per UL 94 |
| Operating Temperature | -40°C to 60°C |
| Body Material | Nylon |
| Clamp Nuts | Zinc-Plated Steel |
| Color | Ivory |
| Face Material | Nylon |
| Floorplate Material | Solid Brass 0.060 In Thick |
| Ground Clips | Brass-Plated |
| Brand | Leviton |
| SKU | 25249-TFB |
| UPC | 07847741152 |
| Type | Wall Plates |
| Title | Default Title |
