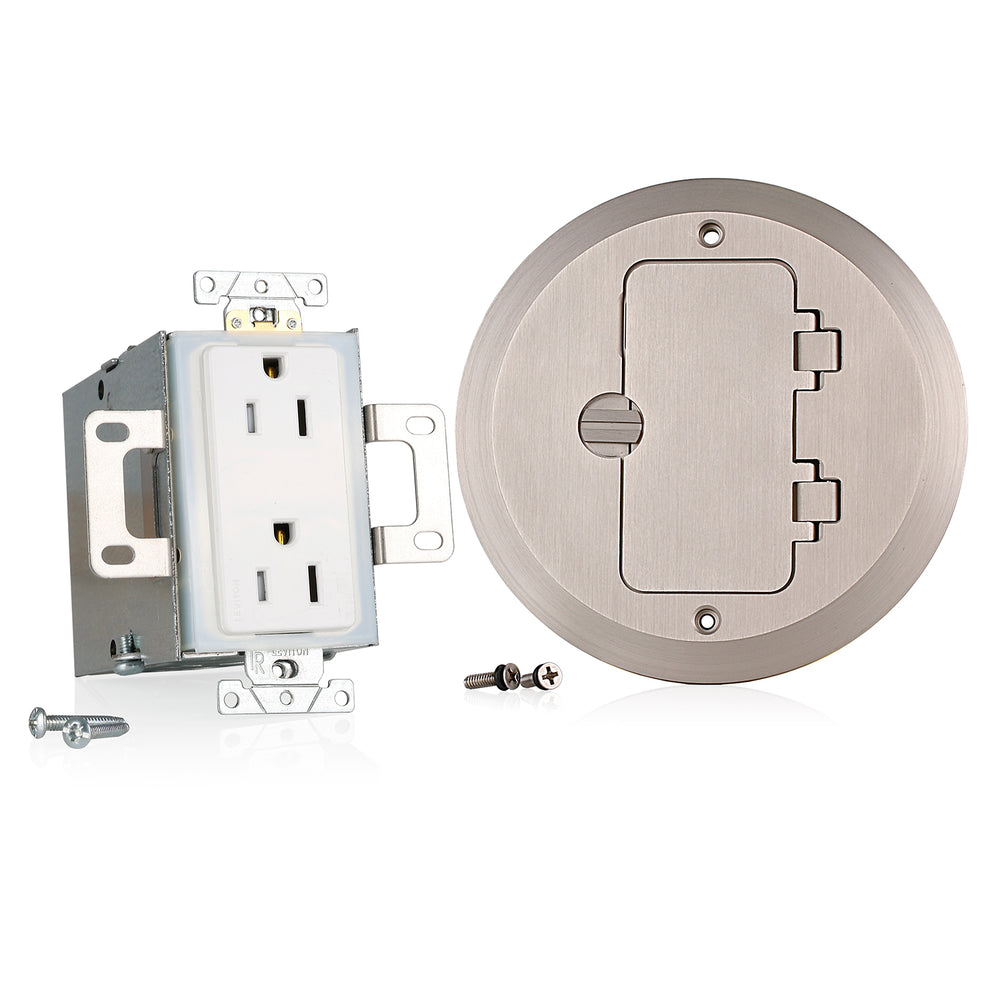

Leviton 25251-TDN 1-Gang Floor Box Receptacle Assembly, 15 Amp, 125 Volt, NEMA 5-15R, 2P, 3W, Tamper-Resistant Decora
Leviton

Leviton 25251-TDN 1-Gang Floor Box Receptacle Assembly, 15 Amp, 125 Volt, NEMA 5-15R, 2P, 3W, Tamper-Resistant Decora

LevitonModel / SKU: 25251-TDN · UPC 07847700257
Wall Plates
$90.23
$90.23 each
Get a quote
Spec Sheet & Documents
Download Spec Sheet (PDF)

1-Gang Floor Box Receptacle Assembly, 15 Amp, 125 Volt, NEMA 5-15R, 2P, 3W, Tamper-Resistant Decora Receptacle, Straight Blade, Commercial Grade, Self Grounding, Steel Strap, Round Cover with Nickel-Plated Brass, Ivory Receptacle

Part Number 25251-TDN
UPC 07847700257
Nema 5-15R
At Rated Voltage 1/2 HP
Amperage 15 A
Current Limiting Full Rated Current
Dielectric Voltage Withstands 2000V per UL498
Grounding Self-Grounding
Pole 2
Temperature Rise Max 30C after 50 cycles OL at 150 percent rated current
Voltage 125 VAC
Wire 3
Flammability Rated V-2 per UL 94
Operating Temperature -40°C to 60°C
Body Material Nylon
Clamp Nuts Zinc-Plated Steel
Color Ivory
Face Material Nylon
Floorplate Material Solid Brass 0.060 In Thick
Ground Clips Brass-Plated
