Home › Leviton 25251-TFB 1-Gang Floor Box Receptacle Assembly, 15 Amp, 125 Volt, NEMA 5-15R, 2P, 3W, Tamper-Resistant Duplex

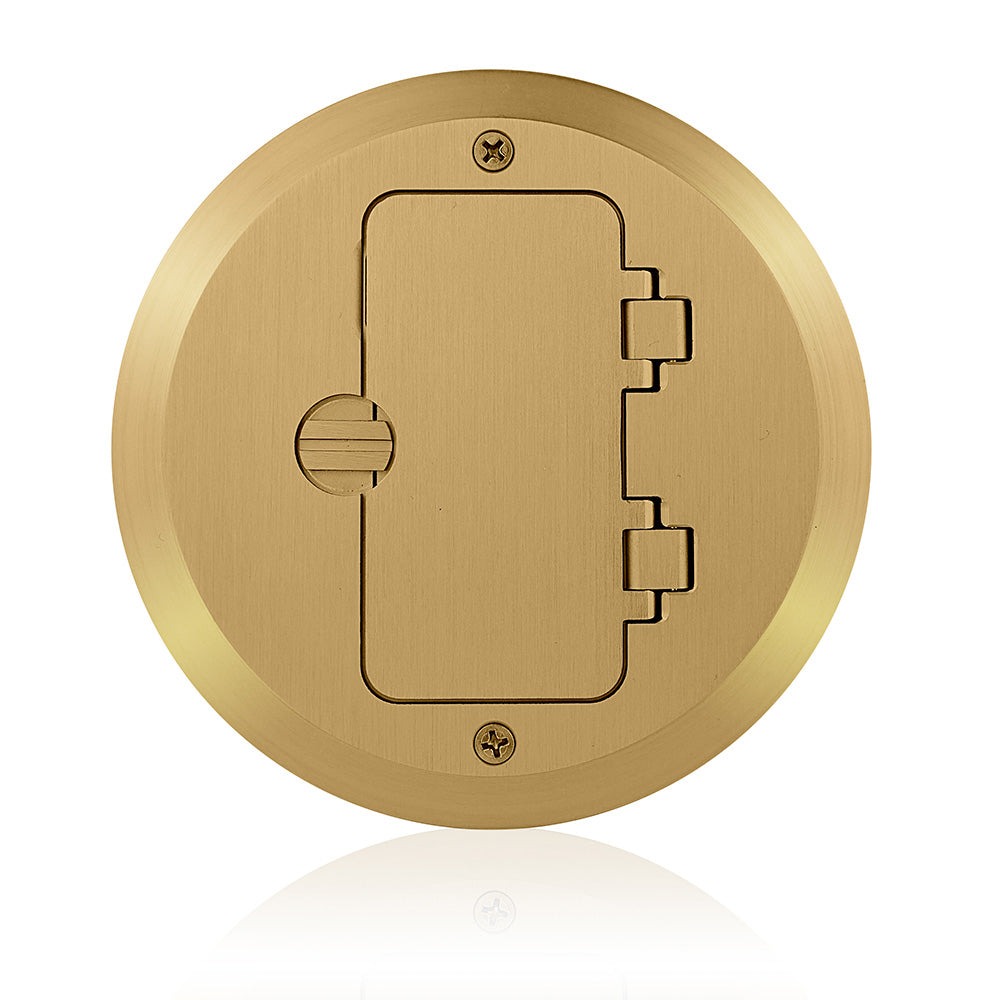

Leviton 25251-TFB 1-Gang Floor Box Receptacle Assembly, 15 Amp, 125 Volt, NEMA 5-15R, 2P, 3W, Tamper-Resistant Duplex
Model / SKU: 25251-TFB · UPC 07847760212$92.93
$92.93 each
Spec Sheet & Documents
Download Spec Sheet (PDF)- 🚚 Free shipping on orders $999+
- ↩ 30-day returns (see policy)
1-Gang Floor Box Receptacle Assembly, 15 Amp, 125 Volt, NEMA 5-15R, 2P, 3W, Tamper-Resistant Duplex Receptacle, Straight Blade, Commercial Grade, Self Grounding, Steel Strap, Round Cover with Brass-Finish Plate, Ivory Receptacle
| Part Number | 25251-TFB |
| UPC | 07847760212 |
| Nema | 5-15R |
| At Rated Voltage | 1/2 HP |
| Amperage | 15 A |
| Current Limiting | Full Rated Current |
| Dielectric Voltage | Withstands 2000V per UL498 |
| Grounding | Self-Grounding |
| Pole | 2 |
| Temperature Rise | Max 30C after 50 cycles OL at 150 percent rated current |
| Voltage | 125 VAC |
| Wire | 3 |
| Flammability | Rated V-2 per UL 94 |
| Operating Temperature | -40°C to 60°C |
| Body Material | Nylon |
| Clamp Nuts | Zinc-Plated Steel |
| Color | Ivory |
| Face Material | Nylon |
| Floorplate Material | Solid Brass 0.060 In Thick |
| Ground Clips | Brass-Plated |
Floor%20Box%20Brochure%20Q-1270C.pdf
Floor-Box-Ordering-Guide-!Q-1524-FvFR.pdf
- Certifications & Listings: UL Listed
| Brand | Leviton |
| SKU | 25251-TFB |
| UPC | 07847760212 |
| Type | Wall Plates |
| Title | Default Title |
Free ground shipping on orders over $999. Orders ship direct from the manufacturer or distributor warehouse, typically within 2–5 business days, then 2–7 business days in transit. Contiguous U.S. only. Freight orders are quoted before you are charged. See our shipping policy and 30-day return policy.
