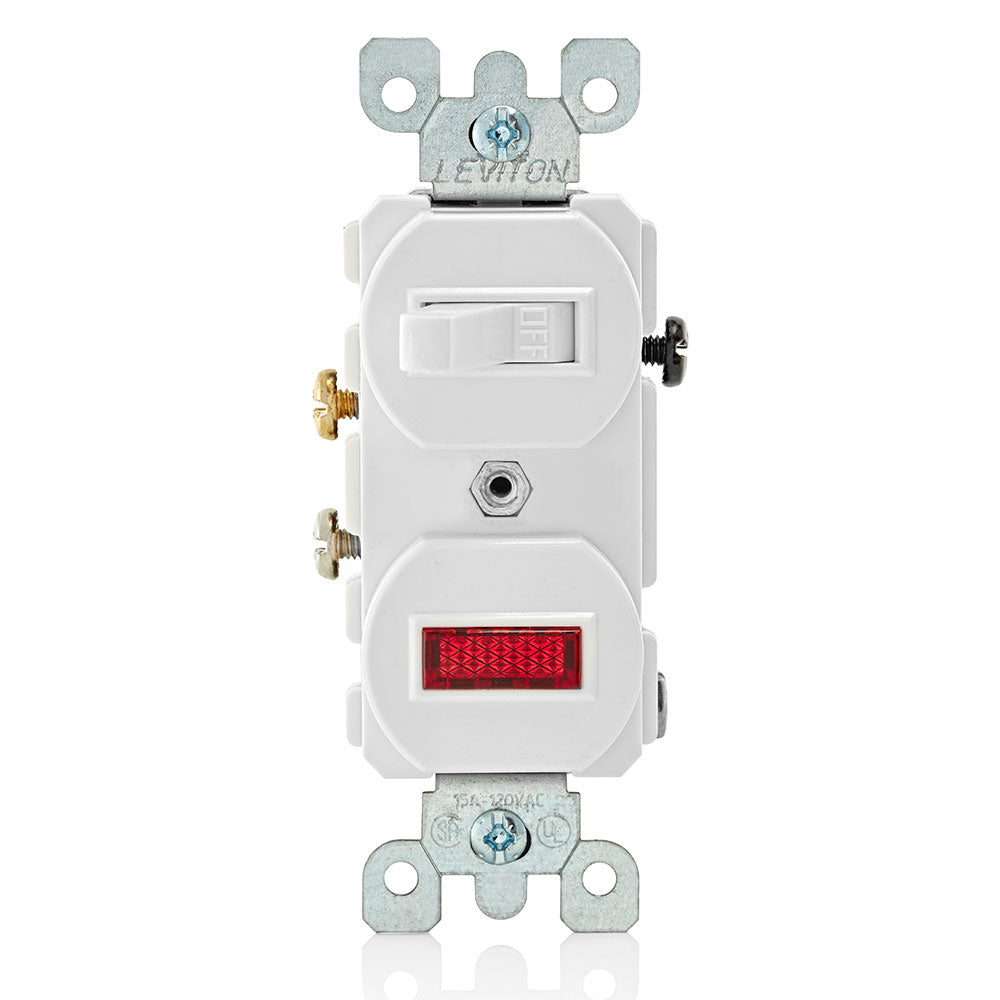

Leviton 5226-W 15 Amp, 120 Volt, Duplex Style Single-Pole / Neon Pilot AC Combination Switch, Commercial Grade
Model / SKU: 5226-W · UPC 07847722700$14.70
$14.70 each
Spec Sheet & Documents
Download Spec Sheet (PDF)- 🚚 Free shipping on orders $999+
- ↩ 30-day returns (see policy)
White - 15 Amp, 120 Volt, Duplex Style Single-Pole / Neon Pilot AC Combination Switch, Commercial Grade, Non-Grounding, Side Wired
| Part Number | 5226-W |
| UPC | 07847722700 |
| HP Rating | 1/2HP-120V |
| Max. Amperage | 12 Amp |
| Dielectric Voltage | Withstands 1500V for 1 minute |
| Grounding | Grounding |
| Neon Pilot Light Voltage | 120V AC |
| Overload UL20 Test | 100 cycles of OL at 4.8 times rated current |
| Pole | 1 |
| Switch Amperage | 15 Amp |
| Switch Voltage | 120/277V AC |
| Temperature Rise | Maximum 30 degrees C rise |
| Flammability | Rated V-2 per UL 94 |
| Operating Temperature | -40°C to 65°C |
| Actuator Material | Thermoplastic |
| Body Material | Thermoplastic |
| Color | White |
| Product ID | Stamped on Strap |
| Terminal Accom. | 14-12 AWG |
| Terminal ID | Brass-Hot Black-Hot White-Neutral Green-Gnd |
5226-Instruction-Sheet_EnFrSp.pdf
- Certifications & Listings: UL Listed
| Brand | Leviton |
| SKU | 5226-W |
| UPC | 07847722700 |
| Type | Combination Devices |
| Title | Default Title |
