Home › Leviton 5280-W 15 A 125 VAC Surge Protection White

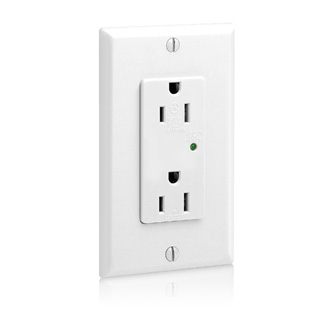

Leviton 5280-W 15 A 125 VAC Surge Protection White
Model / SKU: 5280-W · UPC 07847700883$51.85
$51.85 each
Spec Sheet & Documents
Download Spec Sheet (PDF)- 🚚 Free shipping on orders $999+
- ↩ 30-day returns (see policy)
| Part Number | 5280-W |
| UPC | 07847700883 |
| Nema | 5-15R |
| Amperage | 15 A |
| Current Limiting | Full Rated Current |
| Dielectric Voltage | Withstands 2000V per UL498 |
| Pole | 2 |
| Temperature Rise | Max 30C after 250 cycles OL at 200 percent rated current |
| Voltage | 125 VAC |
| Wire | 3 |
| Flammability | Rated V-2 per UL 94 |
| Operating Temperature | -40°C to 60°C |
| Body Material | Thermoplastic Nylon |
| Clamp Nuts | Zinc-Plated Steel |
| Face Material | Thermoplastic Nylon |
| Grounding Screw | Brass-Plated Steel |
| Line Contacts | Brass Triple-Wipe |
| Shutter Mechanism | Delrin® Acetal |
| Terminal Screws | Brass-Plated Steel |
| Yoke | Zinc-Plated Steel |
Straight%20Blade%20Receptacle%20Catalog%20Q-1101H.pdf
- Certifications & Listings: UL Listed
| Brand | Leviton |
| SKU | 5280-W |
| UPC | 07847700883 |
| Type | Surge Protection |
