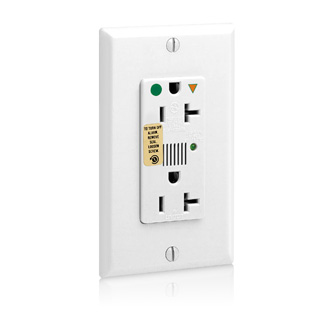

Leviton 8380-IGW 20 A 125 VAC Surge Protection White
Model / SKU: 8380-IGW · UPC 07847700909$73.57
$73.57 each
Spec Sheet & Documents
Download Spec Sheet (PDF)- 🚚 Free shipping on orders $999+
- ↩ 30-day returns (see policy)
| Part Number | 8380-IGW |
| UPC | 07847700909 |
| Nema | 5-20R |
| At Rated Voltage | 1 HP |
| Amperage | 20 A |
| Current Limiting | Full Rated Current |
| Dielectric Voltage | Withstands 2000V per UL498 |
| Pole | 2 |
| Temperature Rise | Max 30C after 250 cycles OL at 200 percent rated current |
| Voltage | 125 VAC |
| Wire | 3 |
| Operating Temperature | -40°C to 60°C |
| Body Material | Nylon |
| Clamp Nuts | Zinc-Plated Steel |
| Face Material | Nylon |
| Grounding Screw | Brass-Plated Steel |
| Line Contacts | Brass Triple-Wipe |
| Shutter Mechanism | Delrin® Acetal |
| Terminal Screws | Brass-Plated Steel |
| Yoke | Zinc-Plated Steel |
Straight%20Blade%20Receptacle%20Catalog%20Q-1101H.pdf
- Certifications & Listings: UL Listed
| Brand | Leviton |
| SKU | 8380-IGW |
| UPC | 07847700909 |
| Type | Surge Protection |
| Title | Default Title |
