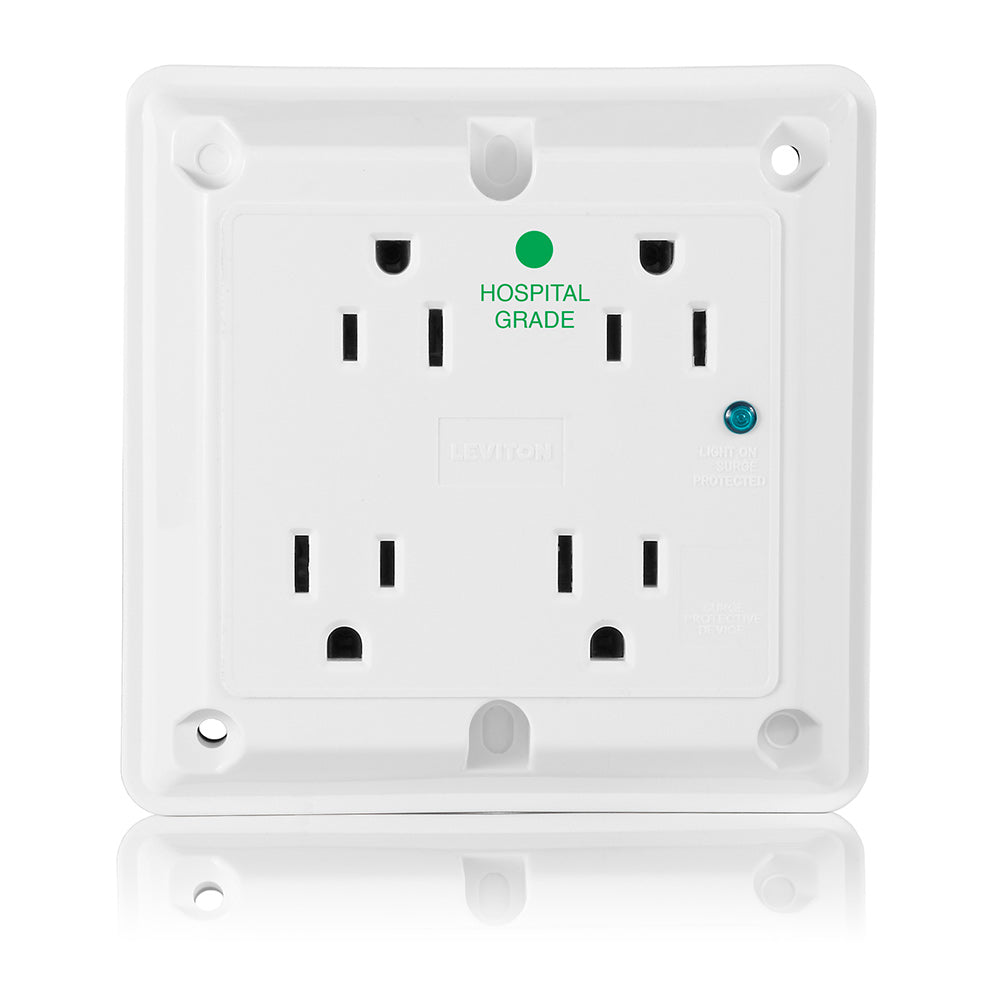

Leviton 8480-W 15 A 125 VAC Surge Protection White
Model / SKU: 8480-W · UPC 07847785144$74.73
$74.73 each
Spec Sheet & Documents
Download Spec Sheet (PDF)- 🚚 Free shipping on orders $999+
- ↩ Easy returns
| Part Number | 8480-W |
| UPC | 07847785144 |
| Nema | 5-15R |
| Amperage | 15 A |
| Current Limiting | Full Rated Current |
| Dielectric Voltage | Withstands 2000V per UL498 |
| Grounding | Grounding |
| Pole | 2 |
| Temperature Rise | Max 30C after 250 cycles OL at 200 percent rated current |
| Voltage | 125 VAC |
| Wire | 3 |
| Operating Temperature | -40°C to 60°C |
| Body Material | Nylon |
| Clamp Nuts | Zinc-Plated Steel |
| Face Material | Nylon |
| Ground Clips | Brass-Plated Steel |
| Grounding Screw | Brass-Plated Steel |
| Line Contacts | Brass Triple-Wipe |
| Mounting Screws | Zinc-Plated Steel 8-32 |
| Shutter Mechanism | Delrin® Acetal |
4-in-1%20Product%20Spotlight.pdf
| Brand | Leviton |
| SKU | 8480-W |
| UPC | 07847785144 |
| Type | Surge Protection |
| Title | Default Title |
