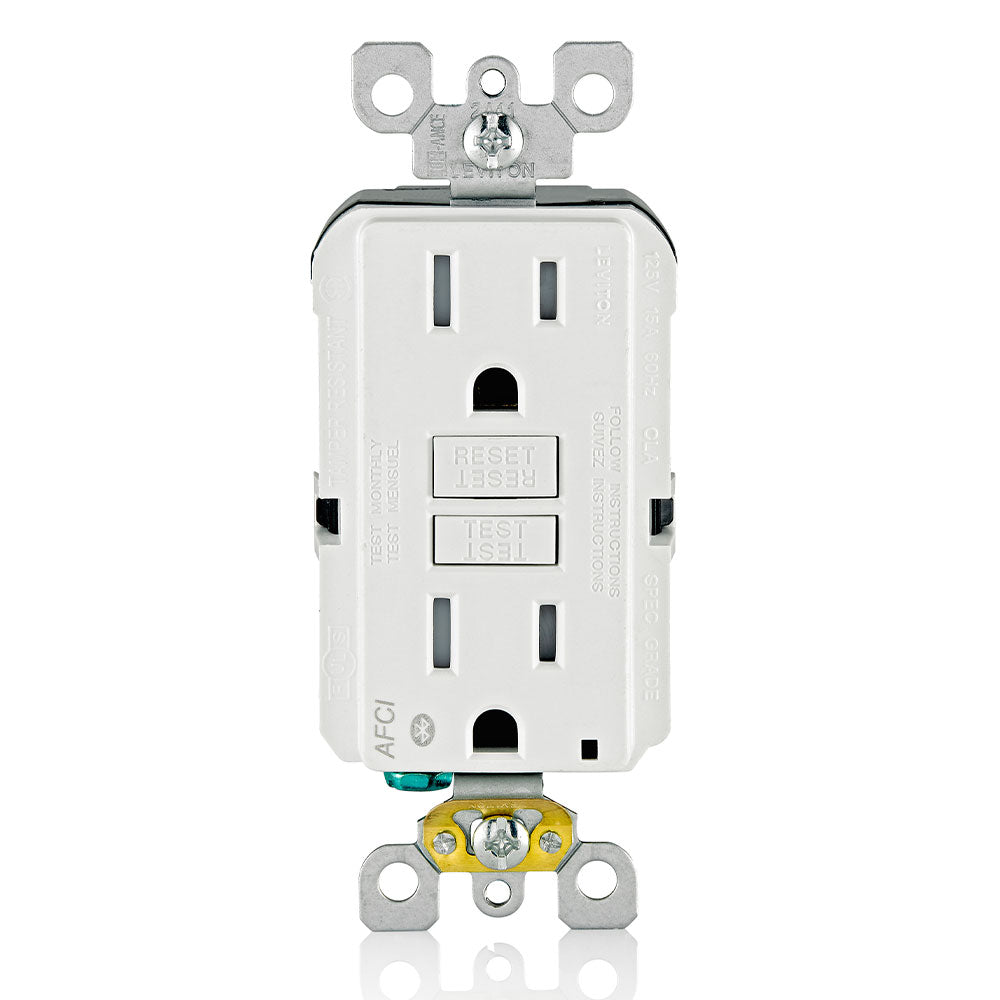

Leviton AFBL1-W White – 15 Amp, 125 Volt Receptacle/Outlet, 20 Amp Feed-Through, Tamper-Resistant, AFCI Receptacle/Outlet
Model / SKU: AFBL1-W · UPC 07847742558$45.76
$45.76 each
Spec Sheet & Documents
Download Spec Sheet (PDF)- 🚚 Free shipping on orders $999+
- ↩ 30-day returns (see policy)
White – 15 Amp, 125 Volt Receptacle/Outlet, 20 Amp Feed-Through, Tamper-Resistant, AFCI Receptacle/Outlet with Bluetooth connectivity, back and side wired, nylon wallplate/faceplate, screws and self-grounding clip included
| Part Number | AFBL1-W |
| UPC | 07847742558 |
| Nema | 5-15R |
| At Rated Voltage | 1 HP |
| Dielectric Voltage | Withstands 1250VAC per UL 1699A |
| Temperature Rise | Max 30C after 250 cycles OL at 200 percent rated current |
| Flammability | Rated V-2 per UL 94 |
| Operating Temperature | -35°C to 66°C |
| Body Material | Polycarbonate |
| Clamps | Brass |
| Face Material | Thermoplastic |
| Grounding Screw | Plated Steel |
| Line Contacts | Brass Double-Wipe .031 Thick |
| Notes | w/Wallplate |
| Terminal Screws | Plated Steel |
| Yoke | Zinc-Plated Steel |
| Product ID | Ratings are permanently marked on device |
| Terminal Accom. | 14-10 AWG |
| Terminal ID | Brass-Hot, Green-Ground, Silver-Neutral |
| Amperage | 15 A |
Leviton_AFCI_GFCI_Devices_Brochure.pdf
Leviton%20AFCI%20Product%20Brochure.pdf
AFCI_Devices_Product_Bulletin.pdf
| Brand | Leviton |
| SKU | AFBL1-W |
| UPC | 07847742558 |
| Type | GFCI Receptacles |
