Home › Leviton AFTR2-HGW 20 A 125 VAC GFCI Receptacle White

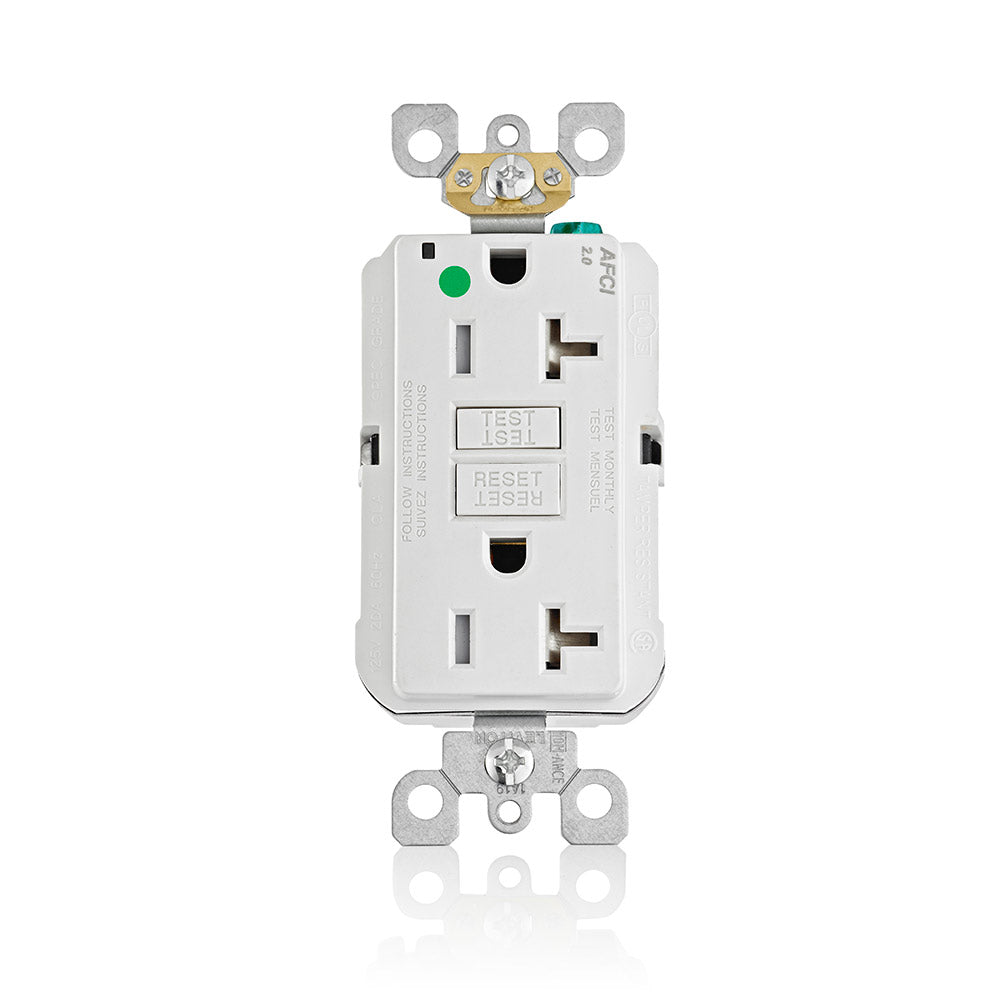

Leviton AFTR2-HGW 20 A 125 VAC GFCI Receptacle White
Model / SKU: AFTR2-HGW · UPC 07847769222$51.08
$51.08 each
Spec Sheet & Documents
Download Spec Sheet (PDF)- 🚚 Free shipping on orders $999+
- ↩ Easy returns
| Part Number | AFTR2-HGW |
| UPC | 07847769222 |
| Nema | 5-20R |
| At Rated Voltage | 1 HP |
| Amperage | 20 A |
| Dielectric Voltage | Withstands 2000V per UL498 |
| Grounding | Self-Grounding |
| Pole | 2 |
| Temperature Rise | Max 30C after 250 cycles OL at 200 percent rated current |
| Voltage | 125 VAC |
| Wire | 3 |
| Flammability | Rated V-0 per UL 94 |
| Operating Temperature | -35C to +66C |
| Body Material | Polycarbonate |
| Face Material | PBT |
| Ground Clips | Brass |
| Grounding Screw | Plated Steel |
| Line Contacts | Brass Double Wipe .031 Thick |
| Strap Material | Zinc-Plated Steel |
| Terminal Clamp | Plated Steel |
| Brand | Leviton |
| SKU | AFTR2-HGW |
| UPC | 07847769222 |
| Type | GFCI Receptacles |
| Title | Default Title |
Free ground shipping on orders over $999. Most in-stock items ship within 1–2 business days. Large or freight orders: contact us for a quote.
