Leviton D3232 Power Pedestal for Marine Applications; Docksider Base Includes Two 30A (125V) Receptacles with Standard
Leviton

Leviton D3232 Power Pedestal for Marine Applications; Docksider Base Includes Two 30A (125V) Receptacles with Standard

LevitonModel / SKU: D3232 · UPC 07847702814
EV Charging
$2,199.90
$2,199.90 each
Get a quote
Spec Sheet & Documents
Download Spec Sheet (PDF)

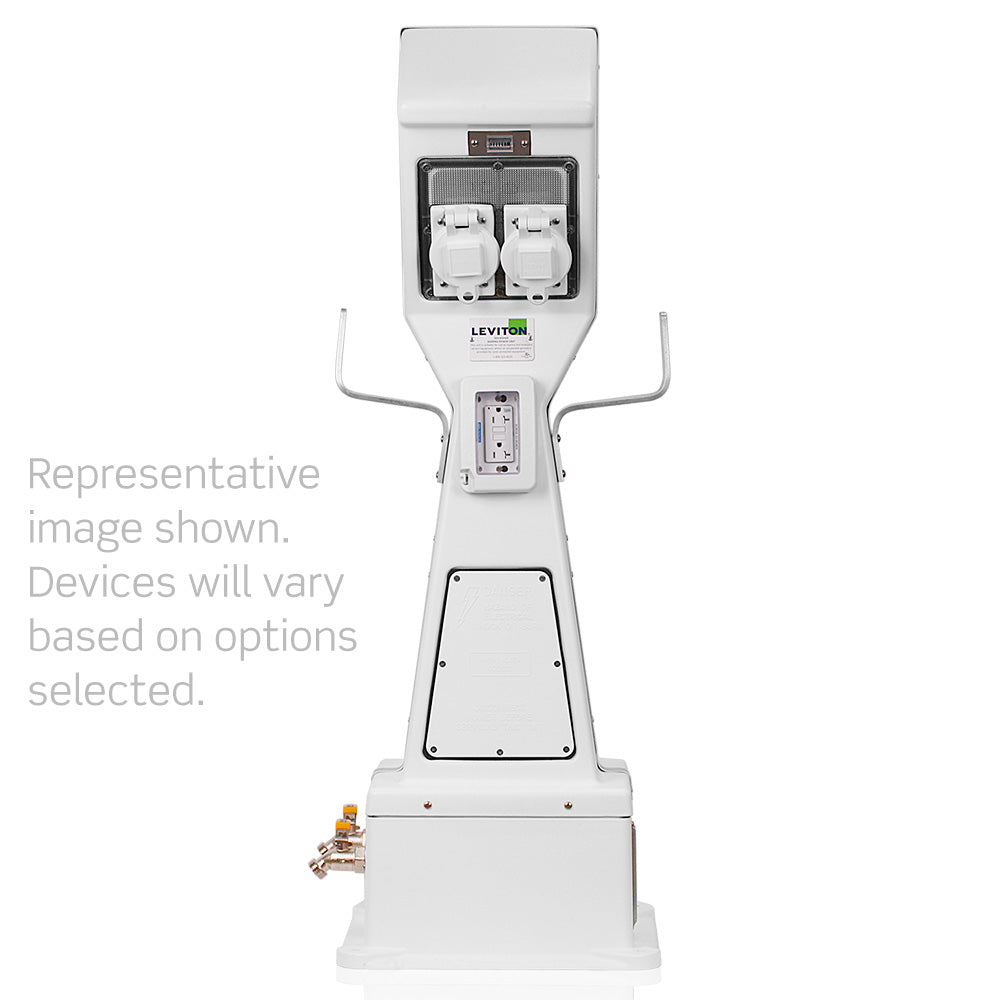

Power Pedestal for Marine Applications; Docksider Base Includes Two 30A (125V) Receptacles with Standard Breakers, Two 20A GFCI Receptacles with Standard Breakers, White LED w/ Photocell, and White Receptacle Covers. Includes Single Phase Loop Distribution Block, Two 3/4” 1/4 Turn Water Valves, No Meter, and No Breaker

Part Number D3232
UPC 07847702814
Max Amperage 240A Max
Voltage 125/250 VAC
Pedestal Material Noryl (Resin)
Construction Molded Body
Mounting Hardware Anchors Included
Application Marine
Color White
Base Docksider Surface Mount
Hinge Type Pedestal
Kitted Options Comes with Leviton Receptacles
Top Twist Lock Receptacles, 20A Straight Blade
Certification/Listing UL-231, CSA 22.2 No. 29, NFPA 303, NFPA 70
NEMA NEMA 3R
Warranty Housing: 5-Year,Devices:1-Year

PK-A3477-10-00-0A-W.pdf

docksider_spec_sheet_ci_1499_leviton.pdf

DS1_power_pedestal_marine_form_ci_q1489_leviton.pdf

spec-sheet-docksider-ci-q-1499-frc-leviton.pdf

Product page on leviton.com
