Leviton D5352 Power Pedestal for Marine Applications; Docksider Base Includes Two 50A (125/250V) Receptacles with Standard
Leviton

Leviton D5352 Power Pedestal for Marine Applications; Docksider Base Includes Two 50A (125/250V) Receptacles with Standard

LevitonModel / SKU: D5352 · UPC 07847702815
EV Charging
$2,414.50
$2,414.50 each
Get a quote
Spec Sheet & Documents
Download Spec Sheet (PDF)

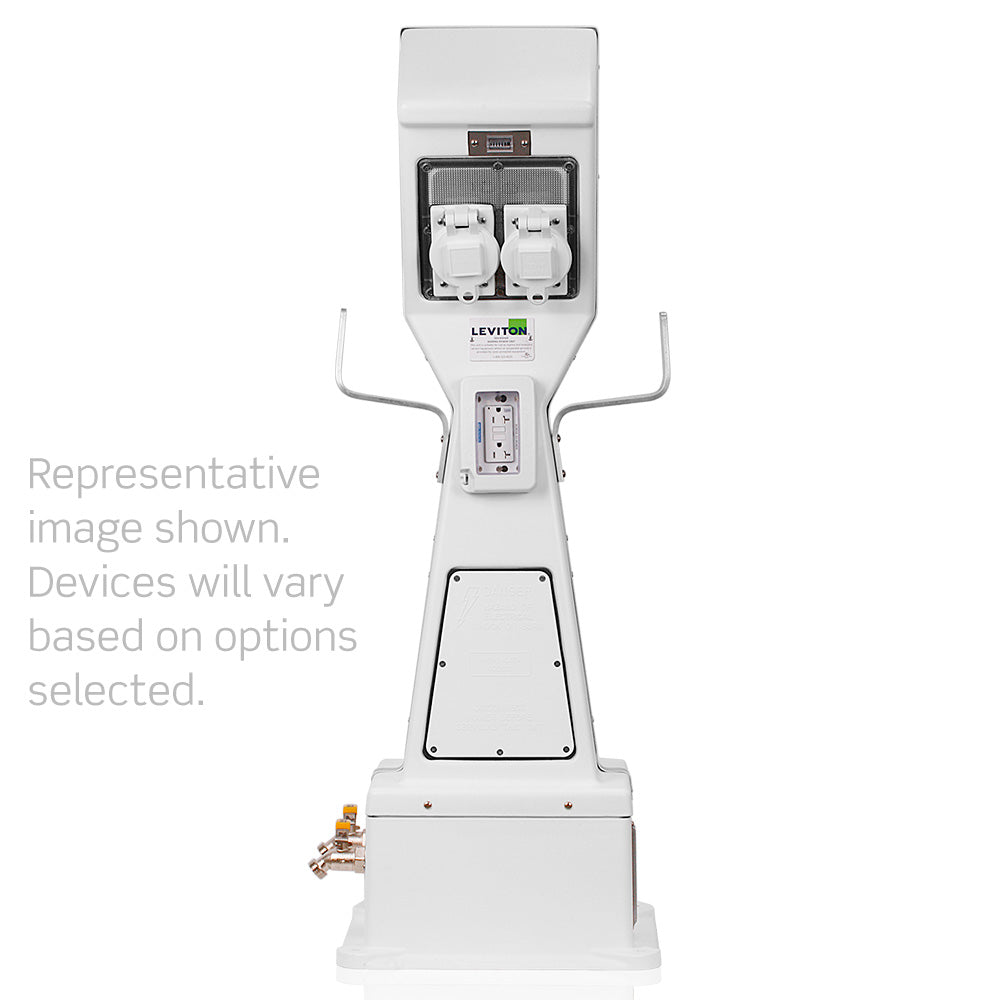

Power Pedestal for Marine Applications; Docksider Base Includes Two 50A (125/250V) Receptacles with Standard Breakers, 30A (125V) Receptacle with Standard Breaker, 20A GFCI Receptacles with Standard Breaker, White LED w/ Photocell, and White Receptacle Covers. Includes Single Phase Loop Distribution Block, Two 3/4” 1/4 Turn Water Valves, No Meter, and No Breaker

Part Number D5352
UPC 07847702815
Max Amperage 240A Max
Voltage 125/250 VAC
Pedestal Material Noryl (Resin)
Construction Molded Body
Mounting Hardware Anchors Included
Application Marine
Color White
Base Docksider Surface Mount
Hinge Type Pedestal
Kitted Options Comes with Leviton Receptacles
Top Twist Lock Receptacles, 20A Straight Blade
Certification/Listing UL-231, CSA 22.2 No. 29, NFPA 303, NFPA 70
NEMA NEMA 3R
Warranty Housing: 5-Year,Devices:1-Year
