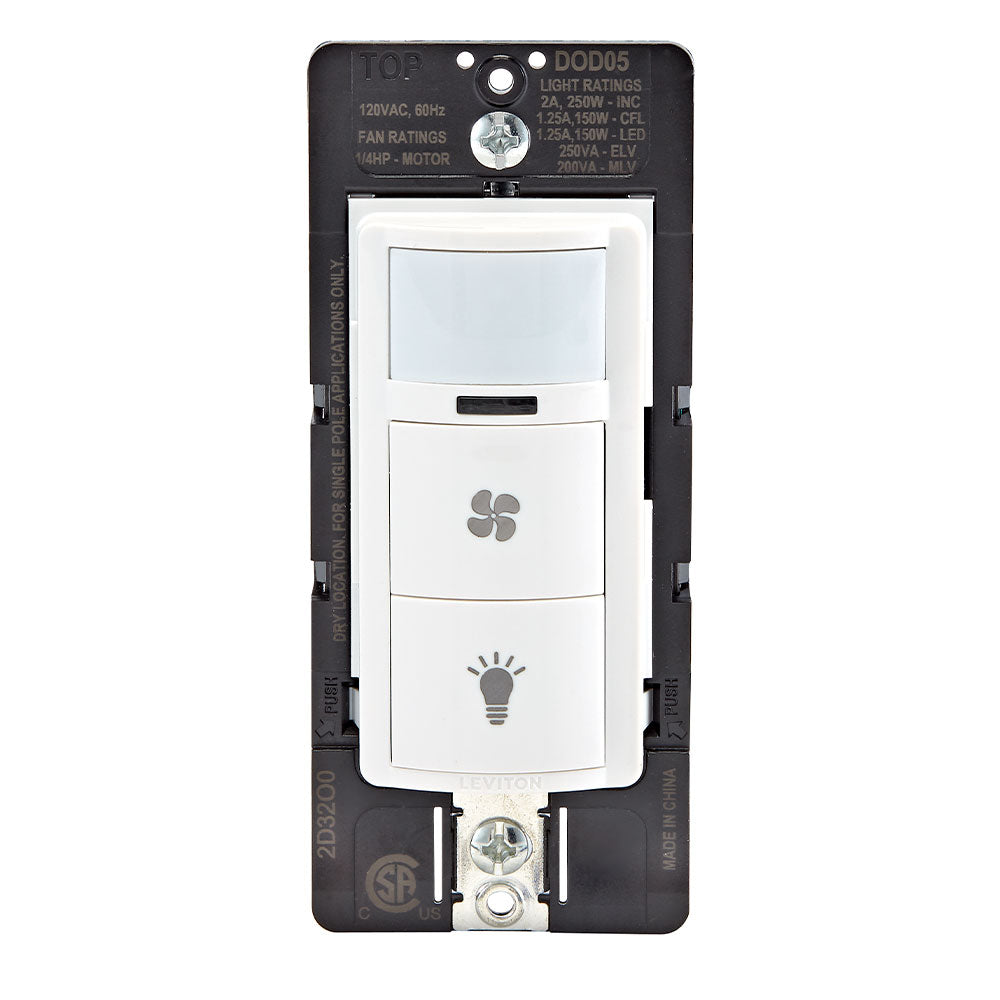

Leviton DOD05-1LW White – Decora Combination Occupancy Sensor with Fan Switch, single pole/single pole. Fan Load (Blue Wire):

LevitonModel / SKU: DOD05-1LW · UPC 07847798550
Occupancy Sensors
$53.74
$53.74 each
Get a quote
Spec Sheet & Documents
Download Spec Sheet (PDF)

White – Decora Combination Occupancy Sensor with Fan Switch, single pole/single pole. Fan Load (Blue Wire): 1/4 HP Fan, 300W LED/CFL, 600W Incandescent/Halogen, 400VA MLV/ELV. Light Load (Red Wire): 150W LED/CFL, 250W Incandescent/Halogen, 200VA MLV, 250VA ELV, 2A Resistive. Can be installed with or without a neutral wire, wallplate sold separately. Can be used to comply with the requirements of 2019 and 2022 California Title 24, Part 6, Automatic-off Controls

Part Number DOD05-1LW
UPC 07847798550
Adjustment Programmable
Auto-ON/Auto-OFF Yes
Color White
Coverage (Sq.Ft.) 180°, 900 Sq. Ft
Device Type Sensor
Dimensions W 1.73" X D 0.95" X H 4.13"
Grade Residential
LED Color Green and Red
Load Rating Fan Load (Blue Wire): 1/4 HP Fan, 300W LED/CFL, 600W Incandescent/Halogen, 400VA MLV/ELV. Light Load (Red Wire): 150W LED/CFL, 250W Incandescent/Halogen, 200VA MLV, 250VA ELV, 2A Resistive
Mounting Type Wall Switch
Neutral Optional
Power Consumption <0.5 Watts
Sensor Technology Passive Infrared
Sensor Type Occupancy
Style Name Decora
Switch Relay
Switch Type Single-Pole / Single Pole
Time Delay 1M, 5M, 10M or 20M

Leviton-Decora-Motion-Sensor-Product-Bulletin.pdf

Leviton-DOD05-Instruction-Sheet-EN.pdf

Leviton-DOD05-Instruction-Sheet-FR.pdf

Leviton-DOD05-Instruction-Sheet-SP.pdf

Product page on leviton.com

  • Certifications & Listings: Title 24 (JA8)
