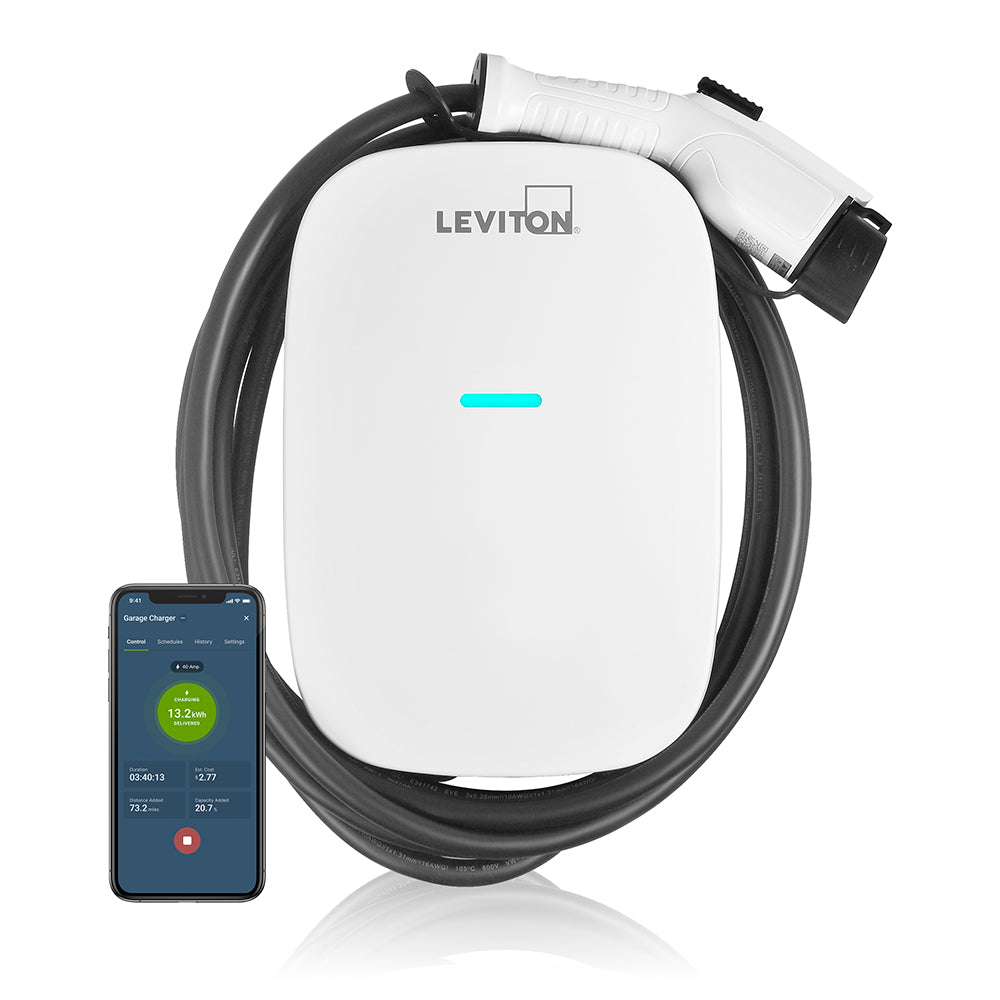

Leviton EV32W Level 2 Electric Vehicle Charging Station, 32A, 208/240 VAC, 7.6kW Output, J1772 Charge Connector, Includes
Leviton

Leviton EV32W Level 2 Electric Vehicle Charging Station, 32A, 208/240 VAC, 7.6kW Output, J1772 Charge Connector, Includes

LevitonModel / SKU: EV32W · UPC 07847787758
EV Charging
$1,091.53
$1,091.53 each
Get a quote
Spec Sheet & Documents
Download Spec Sheet (PDF)

Level 2 Electric Vehicle Charging Station, 32A, 208/240 VAC, 7.6kW Output, J1772 Charge Connector, Includes Mounting Bracket and Pre-Attached Input Cable, Wi-Fi Compatible for Networking with External Providers (Wi-Fi Function 802.11 b/g/n)

Part Number EV32W
UPC 07847787758
Amperage 32 A
Breaker 40 A
Charge Connector Cord SAE J1772
Number of Phase / Wire L1, L2 and Ground, Bottom Feed
Operating Temperature -30°C to 50°C
Output Power 7.6kW
Short Circuit Current Rating 20 mA CCID per UL 2231
Voltage 208/240 VAC
Altitude Up to 6,500 ft. (2,000 m)
Charging Cable Operating Temperature -22°F to +122°F (-30°C to +50°C)
Cooling Natural Cooling
Operating Humidity < 95% Relative Humidity, Non-Condensing
Enclosure Material Plastic (PC+PBT)
Enclosure Rating NEMA Type 3R
Status Indicator Power Present, Charging, Fault
Cable Length 18 ft. (5.5 m)
Application Home
Cover Locking Mechanism Phillips Head Screws, No Padlock Option
