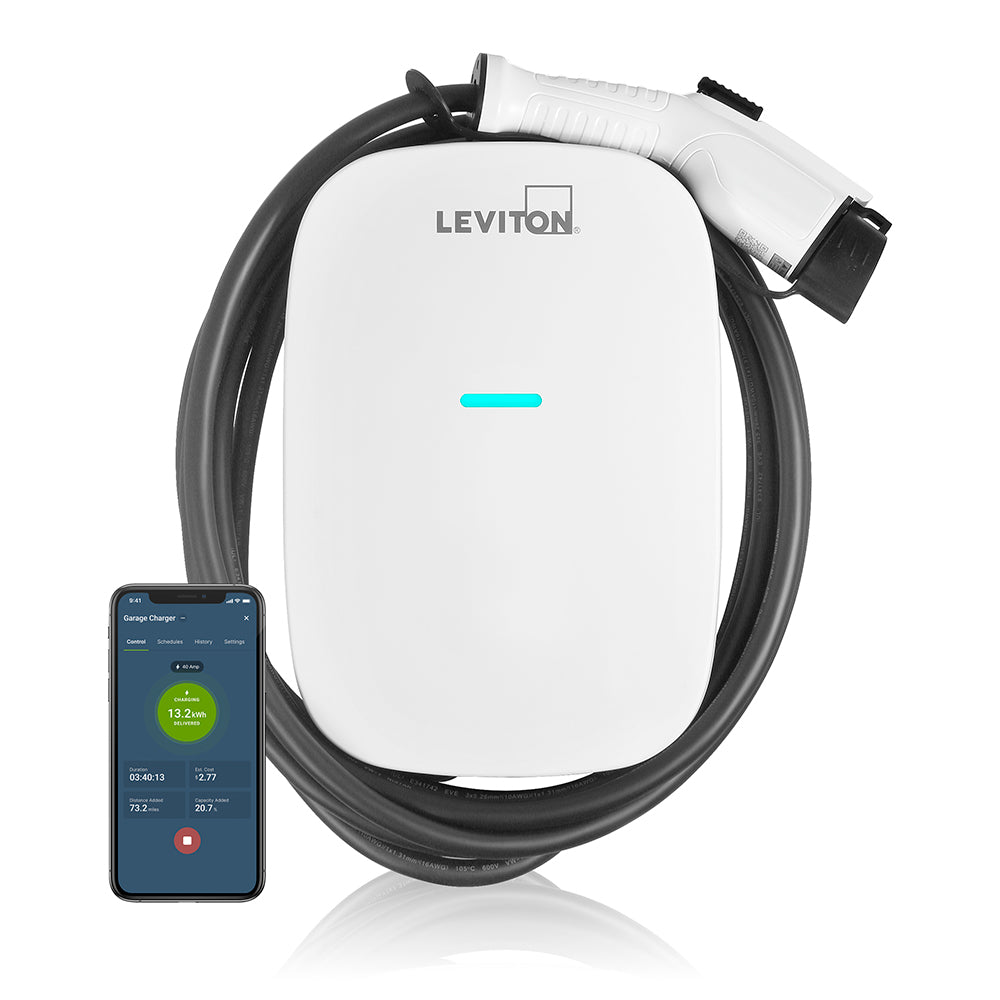

Leviton EV48W EV Series Level 2 Electric Vehicle Charging Station, 48A, 208/240 VAC, 11.6kW Output, J1772 Charge Connector
Leviton

Leviton EV48W EV Series Level 2 Electric Vehicle Charging Station, 48A, 208/240 VAC, 11.6kW Output, J1772 Charge Connector

LevitonModel / SKU: EV48W · UPC 07847787759
EV Charging
$1,158.36
$1,158.36 each
Get a quote
Spec Sheet & Documents
Download Spec Sheet (PDF)

EV Series Level 2 Electric Vehicle Charging Station, 48A, 208/240 VAC, 11.6kW Output, J1772 Charge Connector, Includes Mounting Bracket and Pre-Attached Input Cable, Optional RFID Control, Wi-Fi Compatible (Wi-Fi Function 802.11 b/g/n)

Part Number EV48W
UPC 07847787759
Amperage 48 A
Breaker 60 A
Charge Connector Cord SAE J1772
Number of Phase / Wire L1, L2 and Ground, Bottom Feed
Operating Temperature -30°C to 50°C
Output Power 11.6kW
Short Circuit Current Rating 20 mA CCID per UL 2231
Voltage 208/240 VAC
Altitude Up to 6,500 ft. (2,000 m)
Charging Cable Operating Temperature -30°C to +50°C
Cooling Natural Cooling
Operating Humidity < 95% Relative Humidity, Non-Condensing
Enclosure Material Plastic (PC+PBT)
Enclosure Rating NEMA Type 3R
Status Indicator Power Present, Charging, Fault
Cable Length 18 ft. (5.5 m)
Application Home
Cover Locking Mechanism Phillips Head Screws, No Padlock Option
