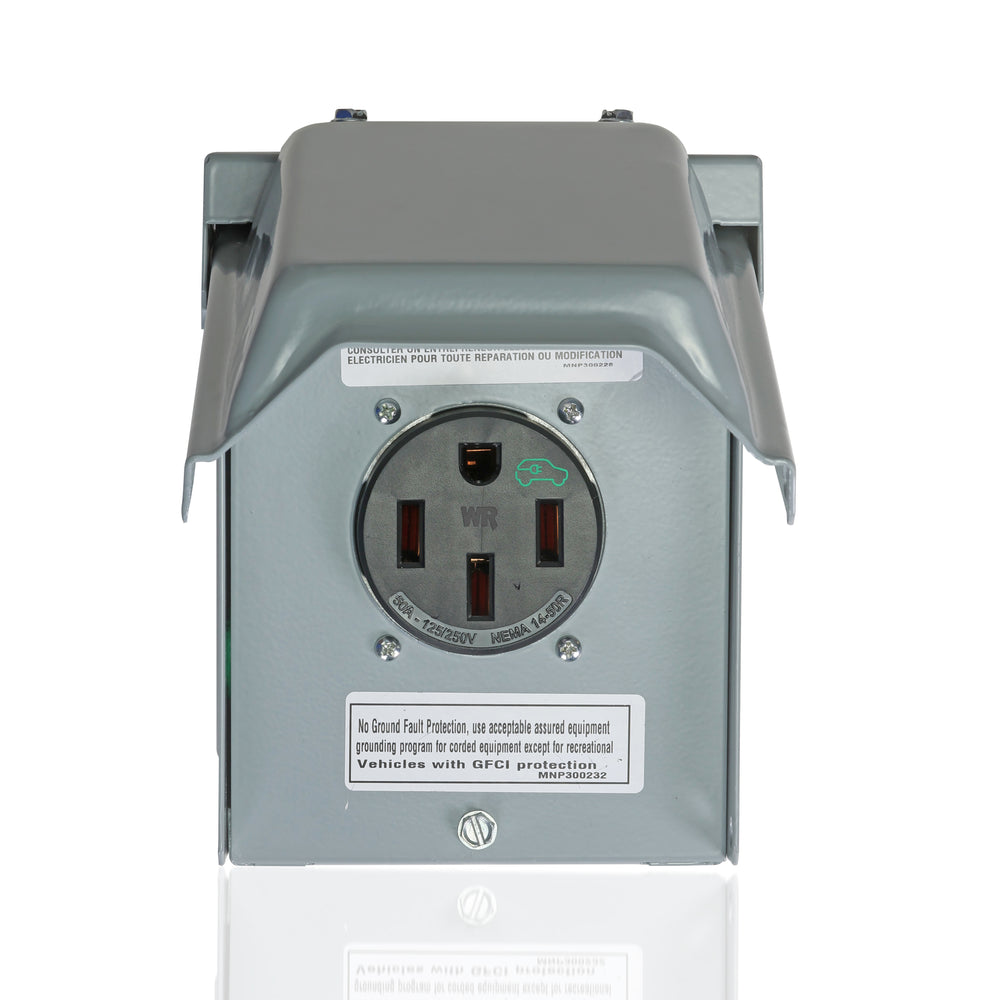

Leviton EVCVM-50 50 Amp, 125/250 Volt, NEMA 14-50R, 3-Pole, 4-Wire, Heavy Duty EV Charging Receptacle/Outlet, Straight Blade
Leviton

Leviton EVCVM-50 50 Amp, 125/250 Volt, NEMA 14-50R, 3-Pole, 4-Wire, Heavy Duty EV Charging Receptacle/Outlet, Straight Blade

LevitonModel / SKU: EVCVM-50 · UPC 07847703489
EV Charging
$71.50
$71.50 each
Get a quote
Spec Sheet & Documents
Download Spec Sheet (PDF)

50 Amp, 125/250 Volt, NEMA 14-50R, 3-Pole, 4-Wire, Heavy Duty EV Charging Receptacle/Outlet, Straight Blade, Industrial Grade, Weather-Resistant,  Pre-assembled with Outdoor Metal Cover, Surface Mount

Part Number EVCVM-50
UPC 07847703489
Nema 14-50R
RoHS Compliant Yes
Amperage 50A
Color Gray
Device Type Weather-Resistant Outlet / Weatherproof Cover
Feature Weather-Resistant
Voltage 125/250 VAC
Grade Heavy-Duty/EV
Grounding Grounding
Operating Temperature -40°C to 60°C
Pole 3
Wire 4
Terminal Accom. For use with #4, #6 or #8 AWG copper wire ONLY. May use #10 AWG solid wire for ground connection. DO NOT use with copper-clad or aluminum wires on this device.
Terminal ID X (Brass screw or Black screw) = Hot, Y (Brass screw or Black screw) = Hot; White (Silver screw) = Neutral; Green (Green screw) = Ground
Termination Side-wired
Torque Range 75 in-lbs.
Face Material Nylon
Cover G90 galvanized steel
