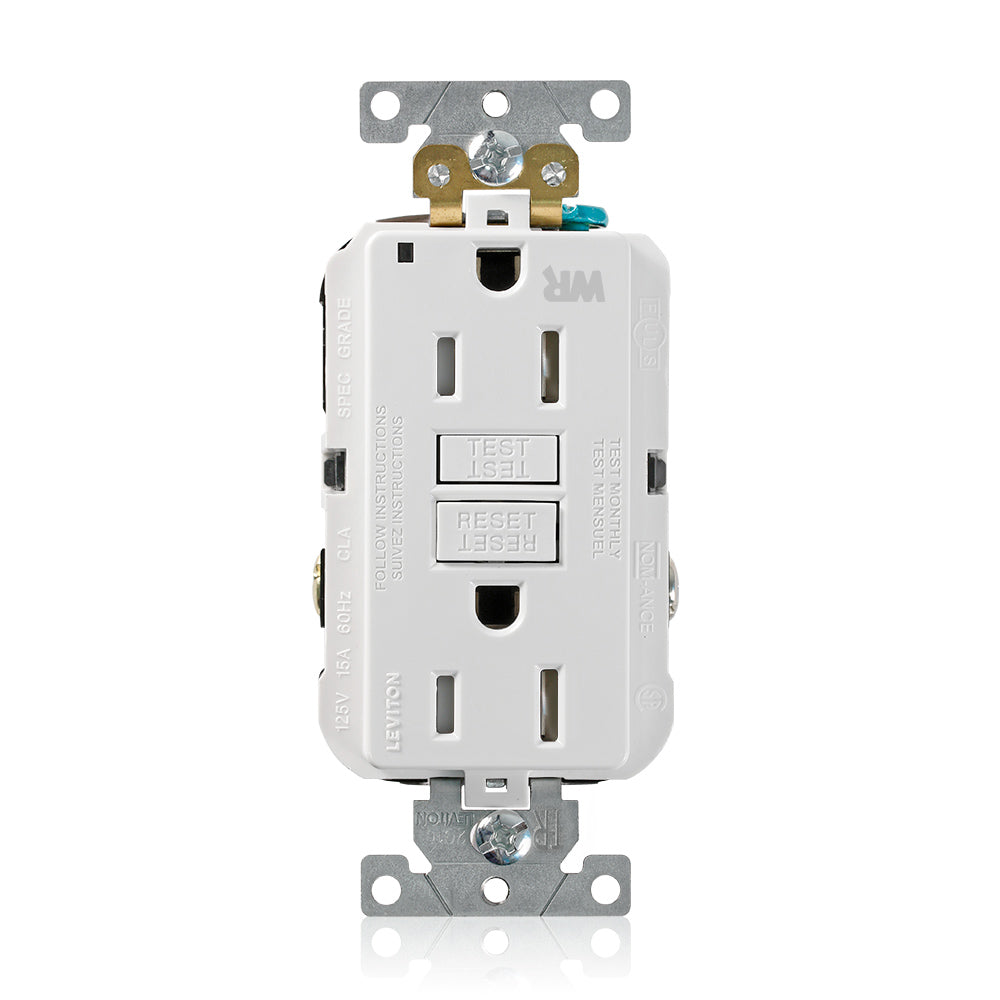

Leviton G5262-WTW 15 A & 20 A Feed-Through 125 VAC GFCI Receptacle White
Model / SKU: G5262-WTW · UPC 07847773096$34.78
$34.78 each
Spec Sheet & Documents
Download Spec Sheet (PDF)- 🚚 Free shipping on orders $999+
- ↩ 30-day returns (see policy)
| Part Number | G5262-WTW |
| UPC | 07847773096 |
| Nema | 5-15R |
| At Rated Voltage | 1 HP |
| Amperage | 15 A & 20 A Feed-Through |
| Grounding | Self-Grounding |
| Pole | 2 |
| Short Circuit Current Rating | 10kA |
| Voltage | 125 VAC |
| Wire | 3 |
| Flammability | Rated V-0 per UL 94 |
| Operating Temperature | -35C to +66C |
| Body Material | Polycarbonate |
| Face Material | PBT |
| Ground Clips | Brass |
| Grounding Screw | Stainless Steel |
| Line Contacts | Brass |
| Shutter Mechanism | Delrin® Acetal |
| Strap Material | Nickel Plated Steel |
| Terminal Clamp | Brass |
| Brand | Leviton |
| SKU | G5262-WTW |
| UPC | 07847773096 |
| Type | GFCI Receptacles |
| Title | Default Title |
