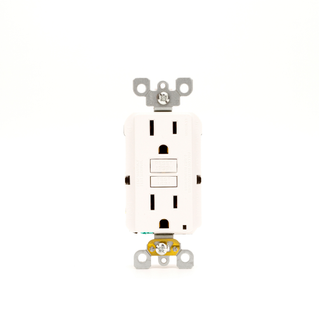

Home › Leviton GFNT1-W 15 Amp, 125 Volt Receptacle/Outlet, 20 Amp Feed-Through, Self-test SmartlockPro Slim GFCI
Leviton GFNT1-W 15 Amp, 125 Volt Receptacle/Outlet, 20 Amp Feed-Through, Self-test SmartlockPro Slim GFCI
Model / SKU: GFNT1-W · UPC 07847771255$19.18
$19.18 each
Spec Sheet & Documents
Download Spec Sheet (PDF)- 🚚 Free shipping on orders $999+
- ↩ 30-day returns (see policy)
White - 15 Amp, 125 Volt Receptacle/Outlet, 20 Amp Feed-Through, Self-test SmartlockPro Slim GFCI, monochromatic, back and side wired, nylon wallplate/faceplate and self grounding clip included
| Part Number | GFNT1-W |
| UPC | 07847771255 |
| Nema | 5-15R |
| Amperage | 15 A |
| Dielectric Voltage | 1250 VAC |
| Grounding | Self-Grounding |
| Horsepower Rating | 1 hp |
| Pole(s) | 2 |
| Power Supply Input and Frequency | 125V, 60Hz |
| Short Circuit Current Rating | 10 kA |
| Temperature Rise | Max 30°C |
| Trip Level | Class A |
| Voltage | 125 VAC |
| Wire(s) | 3 |
| Operating Temperature | Maximum Continuous 66°C, Minimum -35°C (w/o impact) |
| Body | Thermoplastic |
| Face | Thermoplastic |
| Grounding Screw | #8 Galvanized Steel |
| Line Contacts | Brass |
| Mounting Strap | Galvanized Steel |
GFNT1_Instruction_Sheet_English.pdf
GFNT1_Instruction_Sheet_French-Spanish.pdf
| Brand | Leviton |
| SKU | GFNT1-W |
| UPC | 07847771255 |
| Type | GFCI Receptacles |
| Title | Default Title |
