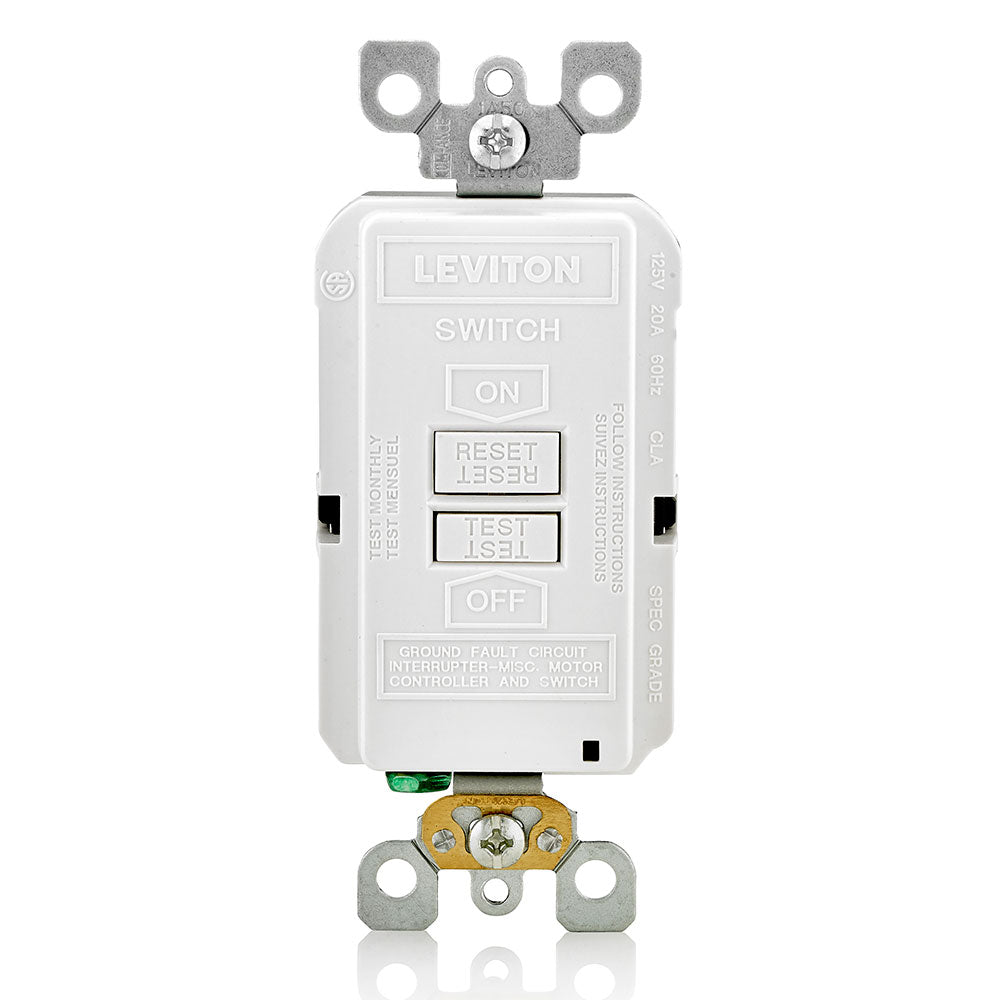

Leviton GFRBF-W White – 20 Amp Feed-Through, 125 Volt, Self-Test SmartlockPro® Blank Face GFCI Receptacle/Outlet
Leviton

Leviton GFRBF-W White – 20 Amp Feed-Through, 125 Volt, Self-Test SmartlockPro® Blank Face GFCI Receptacle/Outlet

LevitonModel / SKU: GFRBF-W · UPC 07847771457
GFCI Receptacles
$26.60
$26.60 each
Get a quote
Spec Sheet & Documents
Download Spec Sheet (PDF)

White – 20 Amp Feed-Through, 125 Volt, Self-Test SmartlockPro® Blank Face GFCI Receptacle/Outlet, Monochromatic, Back and Side Wired, Wallplate/Faceplate Sold Separately. Self-Grounding Clip Included

Part Number GFRBF-W
UPC 07847771457
Amperage 20 A
Dielectric Voltage 1250 VAC
Grounding Self-Grounding
Horsepower Rating 1 hp
Pole(s) 2
Power Supply Input and Frequency 125V, 60Hz
Short Circuit Current Rating 10 kA
Temperature Rise Max 30°C
Trip Level Class A
Voltage 125 VAC
Wire(s) 3
Operating Temperature Maximum Continuous 66°C, Minimum -35°C (w/o impact)
Body Thermoplastic
Face Thermoplastic
Grounding Screw #8 Galvanized Steel
Line Contacts Brass
Mounting Strap Galvanized Steel
Self-Grounding Clip Yes

GFRBF_Instruction_Sheet_English.pdf

GFRBF_Instruction_Sheet_French.pdf

GFRBF_Instruction_Sheet_Spanish.pdf

GFCIs-LED-Indicator-Light-Diagnosis-Instruction-Sheet.pdf

Product page on leviton.com
