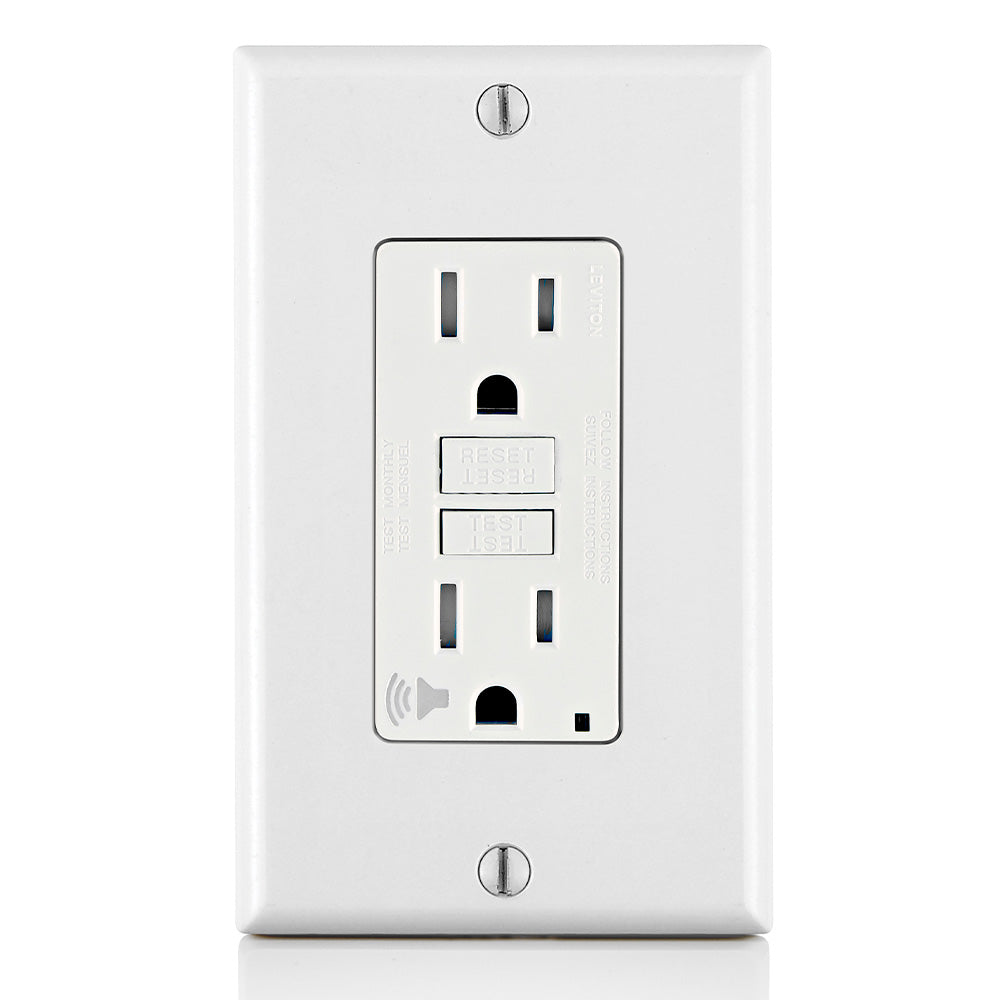

Leviton GFTA1-W 15 Amp, 125 Volt Receptacle/Outlet, 20 Amp Feed-Through, Tamper-Resistant, Self-test SmartlockPro
Leviton

Leviton GFTA1-W 15 Amp, 125 Volt Receptacle/Outlet, 20 Amp Feed-Through, Tamper-Resistant, Self-test SmartlockPro

LevitonModel / SKU: GFTA1-W · UPC 07847773722
GFCI Receptacles
$28.20
$28.20 each
Get a quote
Spec Sheet & Documents
Download Spec Sheet (PDF)

White - 15 Amp, 125 Volt Receptacle/Outlet, 20 Amp Feed-Through, Tamper-Resistant, Self-test SmartlockPro GFCI with Audible Trip Alert, Monochromatic, back and side wired, nylon wallplate/faceplate, screws and self-grounding clip included

Part Number GFTA1-W
UPC 07847773722
Nema 5-15R
Amperage 15 A
Dielectric Voltage 1250 VAC
Grounding Self-Grounding
Horsepower Rating 1 hp
Pole(s) 2
Power Supply Input and Frequency 125V, 60Hz
Short Circuit Current Rating 10 kA
Temperature Rise Max 30°C
Trip Level Class A
Voltage 125 VAC
Wire(s) 3
Operating Temperature Maximum Continuous 66°C, Minimum -35°C (w/o impact)
Body Thermoplastic
Face Thermoplastic
Grounding Screw #8 Galvanized Steel
Line Contacts Brass
Mounting Strap Galvanized Steel
