Home › Leviton GFTR1-3LW 15 A 125 VAC GFCI Receptacle White

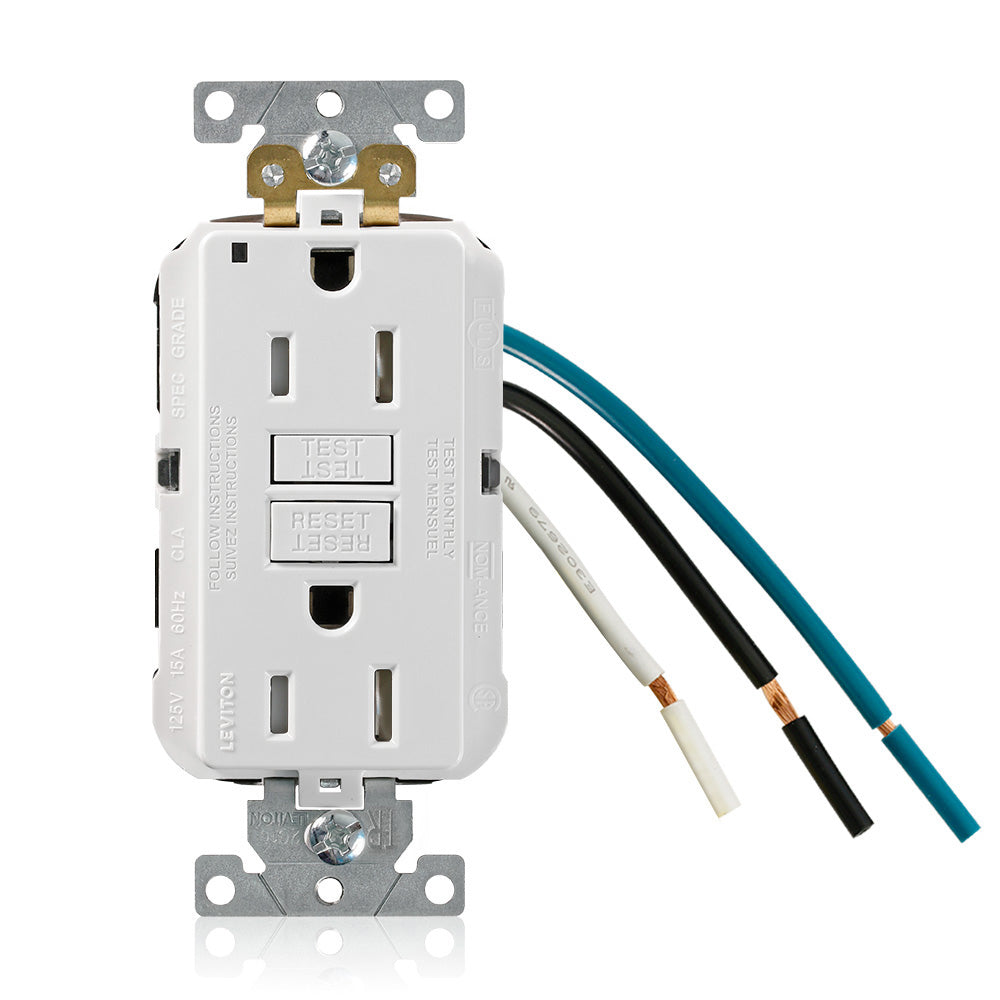

Leviton GFTR1-3LW 15 A 125 VAC GFCI Receptacle White
Model / SKU: GFTR1-3LW · UPC 07847789882$33.36
$33.36 each
Spec Sheet & Documents
Download Spec Sheet (PDF)- 🚚 Free shipping on orders $999+
- ↩ Easy returns
| Part Number | GFTR1-3LW |
| UPC | 07847789882 |
| Nema | 5-20R |
| At Rated Voltage | 1 HP |
| Amperage | 15 A |
| Dielectric Voltage | Withstands 1250VAC per UL 943 and CSA-C22.2 No. 144.1-06 |
| Grounding | Self-Grounding |
| Pole | 2 |
| Short Circuit Current Rating | 10kA |
| Temperature Rise | Max 30C after 250 cycles overload at 200 percent rated current |
| Trip Level | Class A, 5mA plus or minus 1mA |
| Voltage | 125 VAC |
| Wire | 3 |
| Flammability | Rated V-0 per UL 94 |
| Operating Temperature | -35C to +66C |
| Body Material | Polycarbonate |
| Face Material | PBT |
| Ground Clips | Brass |
| Line Contacts | Brass |
| Shutter Mechanism | Delrin® Acetal |
Straight%20Blade%20Receptacle%20Catalog%20Q-1101H.pdf
Leaded%20Receptacles,%20GFCIs%20and%20Switches%20Product%20Bulletin%20Q-1133A.pdf
| Brand | Leviton |
| SKU | GFTR1-3LW |
| UPC | 07847789882 |
| Type | GFCI Receptacles |
