Home › Leviton GFTR1-5LW 15 A & 20 A Feed-Through 125 VAC GFCI Receptacle White

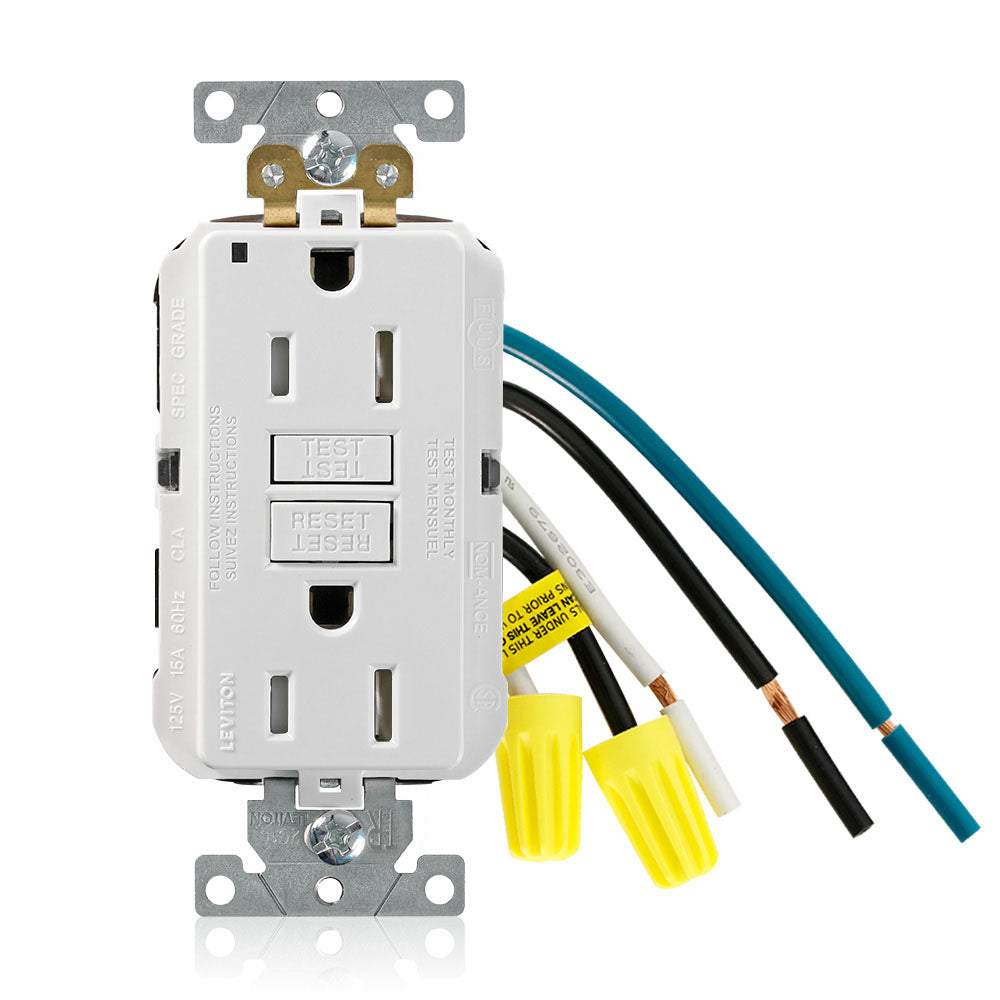

Leviton GFTR1-5LW 15 A & 20 A Feed-Through 125 VAC GFCI Receptacle White
Model / SKU: GFTR1-5LW · UPC 07847772411$31.66
$31.66 each
Spec Sheet & Documents
Download Spec Sheet (PDF)- 🚚 Free shipping on orders $999+
- ↩ 30-day returns (see policy)
| Part Number | GFTR1-5LW |
| UPC | 07847772411 |
| Nema | 5-15R |
| At Rated Voltage | 1 HP |
| Amperage | 15 A & 20 A Feed-Through |
| Dielectric Voltage | Withstands 1250VAC per UL 943 and CSA-C22.2 No. 144.1-06 |
| Grounding | Self-Grounding |
| Pole | 2 |
| Short Circuit Current Rating | 10kA |
| Temperature Rise | Max 30C after 250 cycles overload at 200 percent rated current |
| Trip Level | Class A, 5mA plus or minus 1mA |
| Voltage | 125 VAC |
| Wire | 3 |
| Flammability | Rated V-0 per UL 94 |
| Operating Temperature | -35C to +66C |
| Body Material | Polycarbonate |
| Face Material | PBT |
| Ground Clips | Brass |
| Line Contacts | Brass |
| Shutter Mechanism | Delrin® Acetal |
GFCIs-LED-Indicator-Light-Diagnosis-Instruction-Sheet.pdf
- Certifications & Listings: CSA
| Brand | Leviton |
| SKU | GFTR1-5LW |
| UPC | 07847772411 |
| Type | GFCI Receptacles |
| Title | Default Title |
