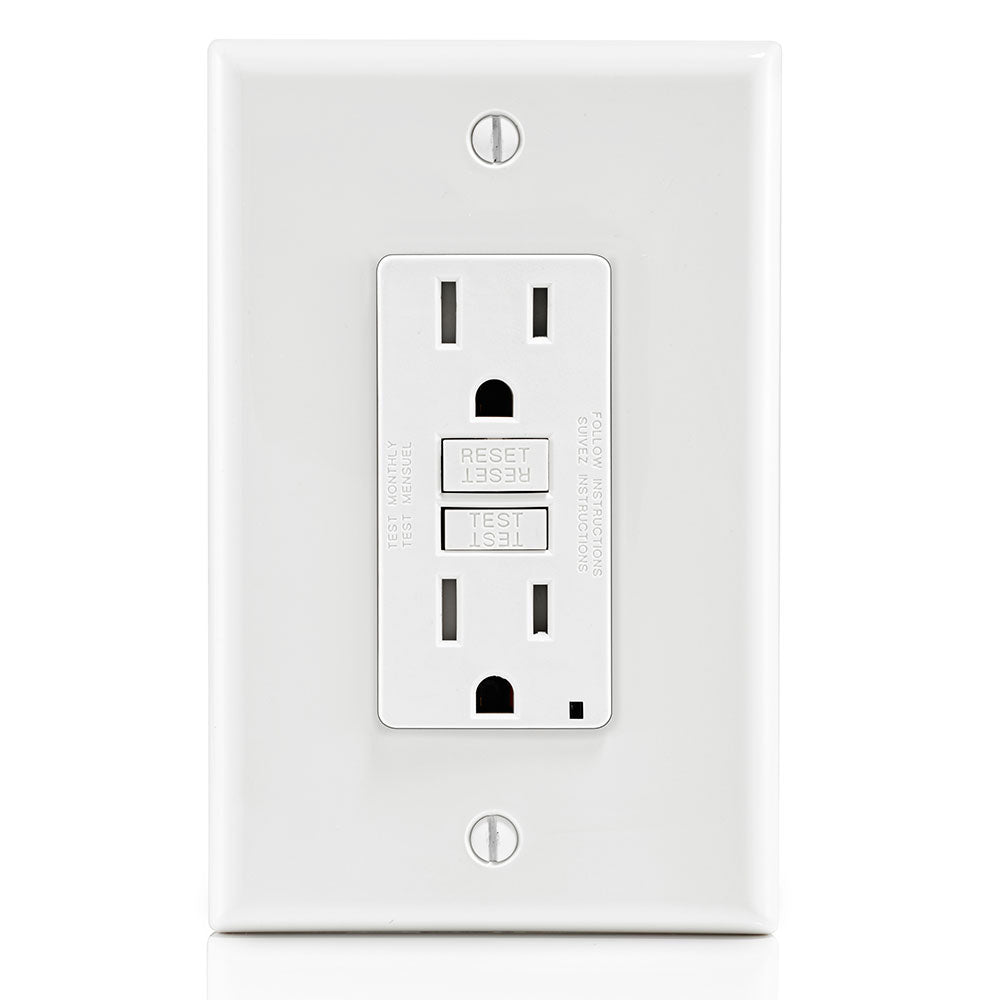

Leviton GFTR1-MW 15 Amp, 125 Volt Receptacle/Outlet, 20 Amp Feed-Through, Tamper-Resistant, Self-test SmartlockPro
Leviton

Leviton GFTR1-MW 15 Amp, 125 Volt Receptacle/Outlet, 20 Amp Feed-Through, Tamper-Resistant, Self-test SmartlockPro

LevitonModel / SKU: GFTR1-MW · UPC 07847776496
GFCI Receptacles
$20.78
$20.78 each
Get a quote
Spec Sheet & Documents
Download Spec Sheet (PDF)

White - 15 Amp, 125 Volt Receptacle/Outlet, 20 Amp Feed-Through, Tamper-Resistant, Self-test SmartlockPro GFCI, Monochromatic, back and side wired, midway sized nylon wallplate/faceplate, screws and self-grounding clip included

Part Number GFTR1-MW
UPC 07847776496
Nema 5-15R
At Rated Voltage 1 HP
Dielectric Voltage Withstands 1250VAC per UL 943 and CSA-C22.2 No. 144.1-06
Short Circuit Current Rating 10KA
Temperature Rise Max 30C after 100 cycles OL at 150 percent rated current
Flammability Rated V-2 per UL 94
Operating Temperature -35C to +66C
Body Material Polycarbonate
Clamps Brass
Face Material Thermoplastic
Grounding Screw Plated Steel
Line Contacts Brass Double Wipe .031 Thick
Notes w/ Midway Sized Wallplate
Terminal Screws Plated Steel
Yoke Zinc-Plated Steel
Product ID Ratings are permanently marked on device
Terminal Accom. 14-10 AWG
Terminal ID Brass-Hot, Green-Ground, Silver-Neutral

GFTR1_Instruction_Sheet_English.pdf

GFTR1_Instruction_Sheet_French.pdf

GFCIs-LED-Indicator-Light-Diagnosis-Instruction-Sheet.pdf

GFCI-Product-Bulletin.pdf

Product page on leviton.com
