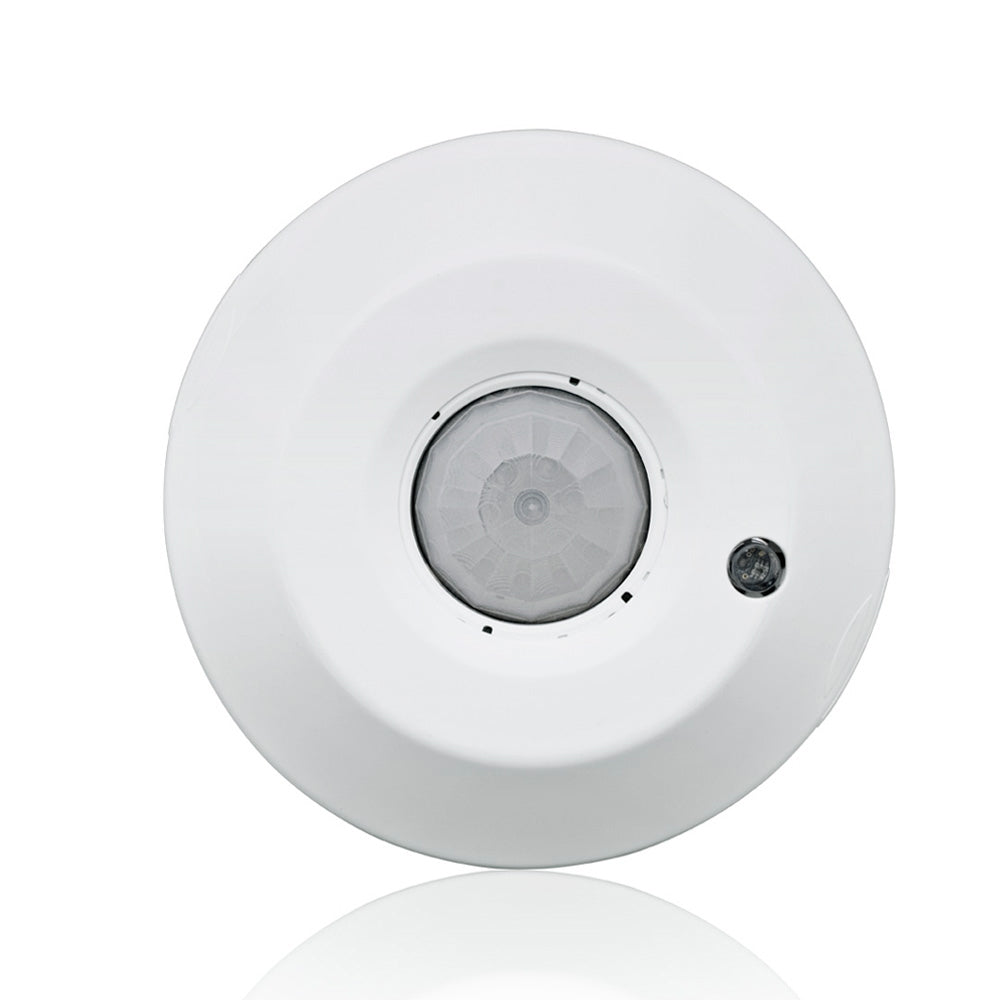

Leviton O2C04-IDW Provolt line voltage ceiling mount occupancy sensor lighting control with daylighting, also known as a motion
Model / SKU: O2C04-IDW · UPC 07847764263- 🚚 Free shipping on orders $999+
- ↩ 30-day returns (see policy)
Provolt line voltage ceiling mount occupancy sensor lighting control with daylighting, also known as a motion sensor or motion detector Part Number O2C04-IDW
| Part Number | O2C04-IDW |
| UPC | 07847764263 |
| Current Consumption | 60-30mA |
| Frequency | 50/60Hz |
| Load Rating | 120V, 50/60Hz: 8A, Electronic Ballast, 800W, Tungsten, 800VA Ballast, 1/4 HP Motor - 230V, 50Hz: 6A/6AX, Electronic Ballast, Magnetic Ballast, Tungsten, 1/3 HP Motor - 277V, 50/60Hz: 5A, Electronic Ballast, 1200VA Ballast, 1/3 HP Motor |
| Neutral Wire Connection | Required |
| Voltage | 120/230/277 VAC |
| Operating Temperature | 32° to 104°F (0° to 40°C) |
| Relative Humidity | 0% to 90% non-condensing |
| Storage Temperature Range | -15° to 160°F (-26° to 71°C) |
| Mounting Type | Ceiling Mount |
| Relay Type | Dual Relay |
| Size | Width 4.81" (122.21mm), Depth 2.39" (60.71mm) |
| Coverage (Sq.Ft.) | 450 |
| Pattern | 360° |
| Title 24 Compliant | Yes |
| Application | Code Compliance,Auto ON/Auto OFF,Manual ON/Auto OFF,Fan Control,Auto ON/Manual ON,Stairwell Control,Step dimming |
| Color | White |
| Feature | PIR Line Voltage Dual Relay |
| Grade | Commercial |
Provolt-Series-Dual-Relay-Passive-Infrared-Occupancy-Sensors-O2Cxx-English-Data-Sheet.pdf
Provolt-Infrared-Ceiling-Mounted-Occupancy-Sensor-O2C04-O2C15-English-Instruction-Sheet.pdf
Provolt-Infrared-Ceiling-Mounted-Occupancy-Sensor-O2C04-O2C15-French-Instruction-Sheet.pdf
Provolt-Infrared-Ceiling-Mounted-Occupancy-Sensor-O2C04-O2C15-Spanish-Instruction-Sheet.pdf
- Certifications & Listings: Title 24 (JA8)
| Brand | Leviton |
| SKU | O2C04-IDW |
| UPC | 07847764263 |
| Type | Occupancy Sensors |
| Title | Default Title |
- 📄 Spec Sheet (PDF)
- 📄 Provolt-Infrared-Ceiling-Mounted-Occupancy-Sensor-O2C04-O2C15-English-Instruction-Sheet.pdf (PDF)
- 📄 Provolt-Infrared-Ceiling-Mounted-Occupancy-Sensor-O2C04-O2C15-French-Instruction-Sheet.pdf (PDF)
- 📄 Provolt-Infrared-Ceiling-Mounted-Occupancy-Sensor-O2C04-O2C15-Spanish-Instruction-Sheet.pdf (PDF)
