Home › Leviton T5225-W 15 Amp, 120 Volt, Tamper Resistant, Duplex Style Single-Pole / 5-15R AC Combination Switch

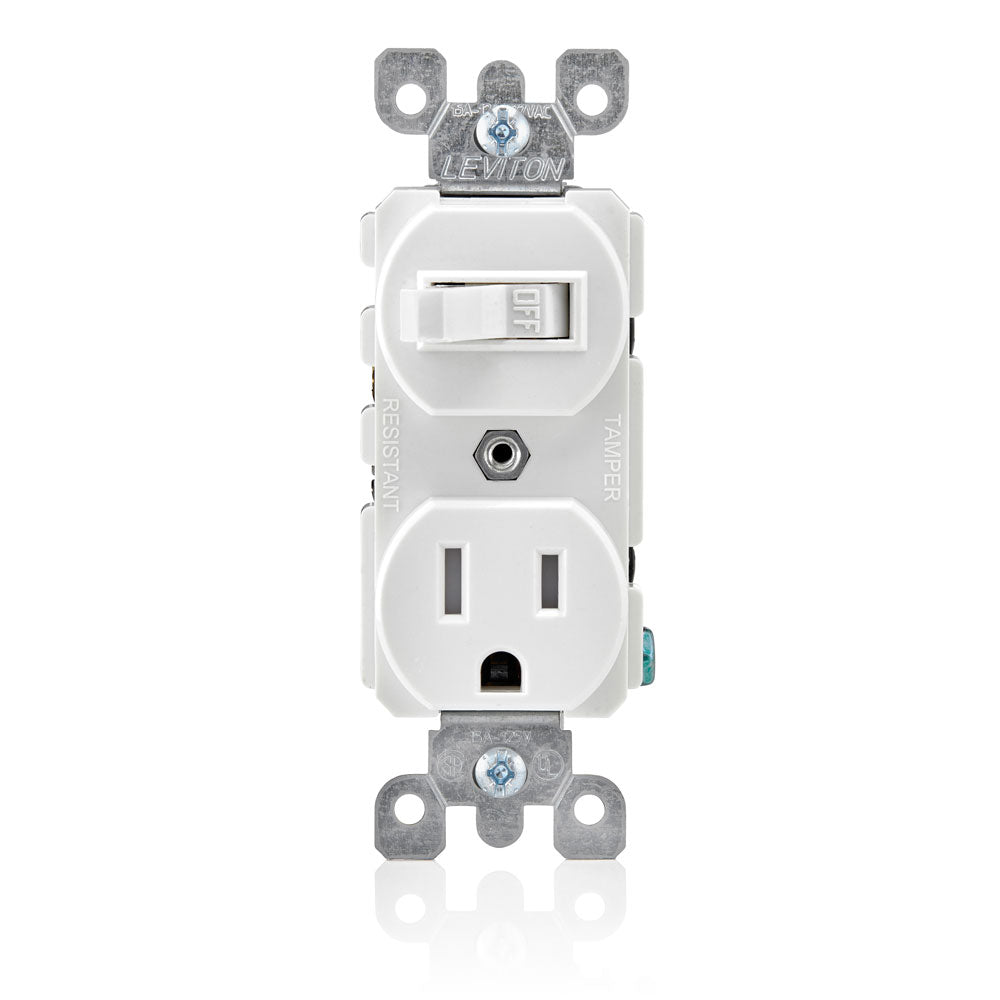

Leviton T5225-W 15 Amp, 120 Volt, Tamper Resistant, Duplex Style Single-Pole / 5-15R AC Combination Switch
Model / SKU: T5225-W · UPC 07847737926$16.92
$16.92 each
Spec Sheet & Documents
Download Spec Sheet (PDF)- 🚚 Free shipping on orders $999+
- ↩ Easy returns
White - 15 Amp, 120 Volt, Tamper Resistant, Duplex Style Single-Pole / 5-15R AC Combination Switch, Commercial Grade, Grounding, Side Wired
| Part Number | T5225-W |
| UPC | 07847737926 |
| Nema | 5-15R |
| HP Rating | 1/2HP-120V |
| Max. Amperage | 12 Amp |
| Dielectric Voltage | Withstands 1500V for 1 minute |
| Grounding | Grounding |
| Overload UL20 Test | 100 cycles of OL at 4.8 times rated current |
| Receptacle Amperage | 15 Amp |
| Receptacle Voltage | 125V AC |
| Switch Amperage | 15 Amp |
| Switch Voltage | 120V AC |
| Temperature Rise | Maximum 30 degrees C rise |
| Operating Temperature | -40°C to 65°C |
| Actuator Material | Thermoplastic |
| Body Material | Thermoplastic |
| Color | White |
| Strap Material | Steel |
| Product ID | Stamped on Strap |
| Terminal Accom. | 14-12 AWG |
T5225-Instruction-Sheet_EnFrSp.pdf
| Brand | Leviton |
| SKU | T5225-W |
| UPC | 07847737926 |
| Type | Tamper-Resistant Receptacles |
| Title | Default Title |
